Rubber Extruder Machine Bearing T8AR18100 Size 18100304mm

🔍

T8AR18100

Bore Diameter:18 mm

Outside Diameter:100 mm

Width:304 mm

Reference FOB Price:US100 ~ 1000 / Piece

Min. Order:10 Piece

small radial design envelope ■ high axial forces ■ long operating life ■ low frictional energy.

The T8AR18100 bearing is a Extruder Tandem roller Bearing with an inner diameter of 18 mm , an outer diameter of 100 mm, a width of 304 mm. It typically uses P5 P4 Grade grade precision tolerances and features a Brass or Nylon cage, steel rings. It primarily bears Radial, Its dynamic radial rated load is approximately 1350, its static radial rated load is approximately 5700. It uses C0 C3 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: tandem roller bearing

Application: single and twin screw extruders gearbox

Dimensions:

Inside Diameter:

18 mm

Outside Diameter:

100 mm

Thickness:

304 mm

Performance Data:

Dynamic load Capacity, Radial (Cr):

1350

Static load Capacity, Radial (C0r):

5700

Specifications:

Old Designations:

t8ar18100

HS Code:

8482500090

Structure:

Thrust cylindrical roller bearing

Number of Rows:

8 rows

Demensions:

18X100X304mm

Radial Clearance Trade No.:

C0 C3

Precision Rating:

P5 P4 Grade

Load Direction:

Radial

Bearing Material:

Steel

Cage Type:

windows

Cage material:

Brass or Nylon

Roller Material:

steel

Transaction Information:

Transport Package:

carton

Service:

Offer technology service

Shipping Ways:

By Sea or By air

Country of Origin:

China Luoyang

Stock:

500 Piece

Production Capacity:

1000PCS/ 6 months

Port:

shanghai or qingdao

Payment term:

T/T,L/C

Delivery time:

in stock

Detailed description

Rubber extruder machine bearing T8AR18100 Size 18*100*304mm

Bearing factory Number: T8AR18100
Item code: T8AR18100
Roller row number:8 rows
Structure:Basic Type Tandem Thrust Cylindrical Roller Bearing
Original place:China LuoYang
Cage material:brass or AL or Nylon cage
Lubrication:Oil lubrication
Load direction:Radial direction
Boundary metric size: 18X100X304mm
Outer diameter D:45mm
Inner diameter d:6mm
The total height:183.5mm
Bore: Cylindrical bore
HS Code:8482500090
We manufacture two, three, four, six and eight stage bearings in both inch and metric
series. Bore sizes range from about 1 to 22 inches with corresponding outside diameters ranging from 3.5 to 42 inches. tandem thrust bearings are supplied to original equipment manufacturers and the aftermarket.

Tandem thrust cylindrical roller bearings have a limited radial cross-section, super axial load capacity, long-term working life and minimum friction loss, so they are obtained in the parallel twin screw extruder gear transmission box in the rubber and plastics industry Very successful application. It will also be popularized and applied in other mechanical equipment.

Tandem bearings have the following structural types:
1.)The basic type tandem bearing is to connect the shaft ring, the seat ring and the roller-cage assembly through the elastic spacer. This type of bearing is a separate structure, the parts can be disassembled, and it must be carefully installed and disassembled according to the numbering sequence provided by our company.

2.)The tandem bearing with shaft is a modified structure bearing. A shaft is inserted in the inner hole of the basic tandem bearing, and the bearing is fixed on the shaft with an elastic lock ring. The bearing parts of this type are inseparable, and it is very convenient to install and dismount the whole bearing during use.

3.)Tandem bearing with sleeve, sleeve is sleeved on the outside of the basic tandem bearing.

Share this product to:

Let more people see your product

How can you buy Rubber Extruder Machine Bearing T8AR18100 Size 18*100*304mm on the Internet?
High quality T8AR18100 ( ID: 18 mm OD: 100 mm WD: 304 mm , 8 rows Rows , C0 C3 Radial Clearance , P5 P4 Grade Accuracy Class , Steel Material , 1350 Radial dynamic , 5700 Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. T8AR18100. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- 6 stages extruder roller bearing F-52548-100 with sleeve
- The bearing F-52548 mainly used in the twin screw plastic extrusion machine
- Multi-stages 6 Row Sleeve Tandem Roller Bearing F-84897.T6AR
- T-84897.T6AR Full size inch size: Dimension inch size:3.35”*8.78”*11.45” Inner bore:3.35” Outer bore:8.78” Width:11.45”
- Twin Screw Extruder Gearboxes bearing T4AR3075YB 30x75x112mm
- The thrust cylindrical roller bearing T4AR3075YB with size 30x75x112mm, the inner

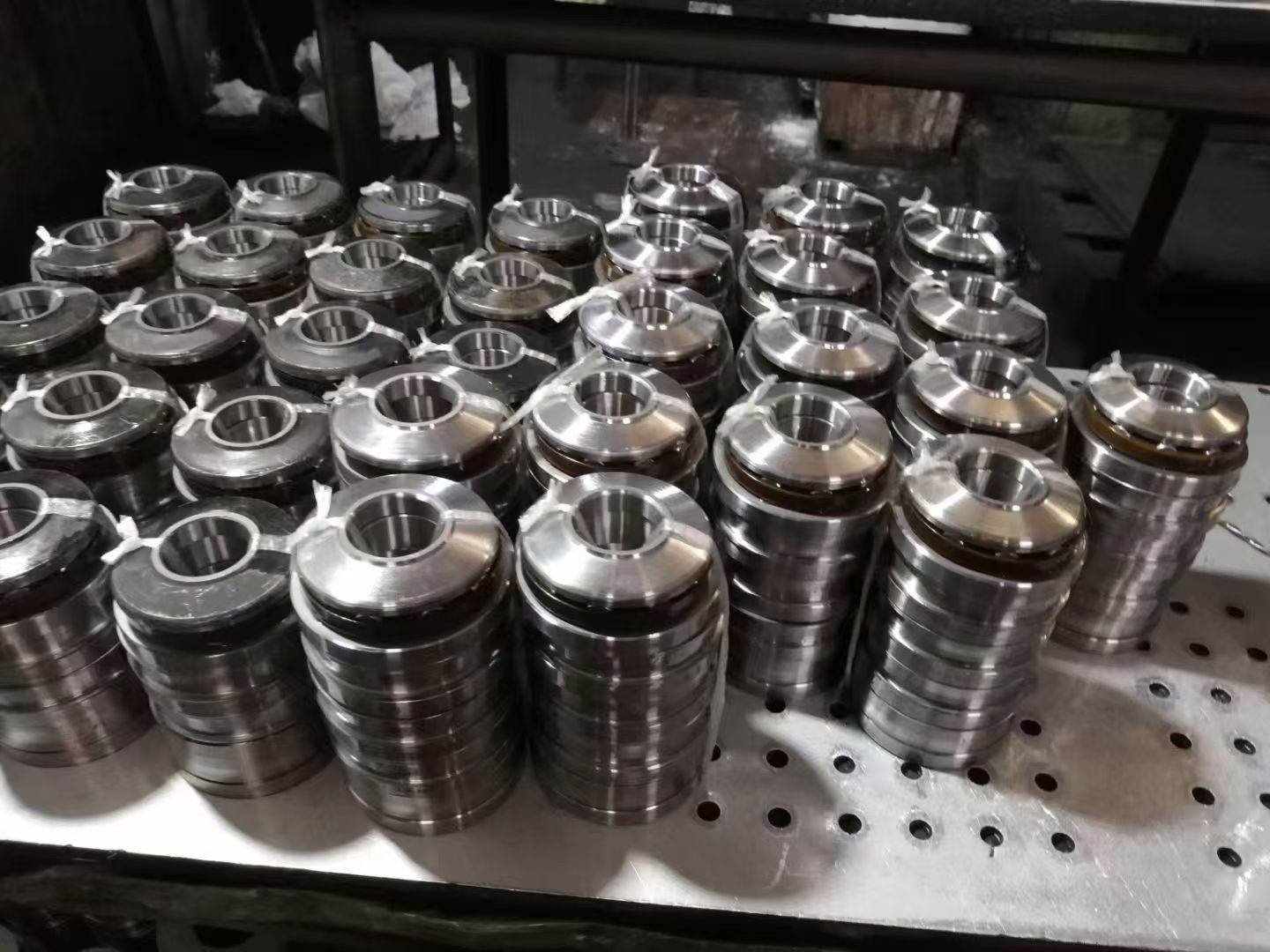

- Multi-stage Tandem thrust cylindrical roller bearing M8CT30127
