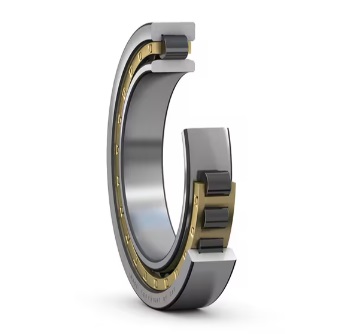

NU 1012 M/HC5C3 Bore 60 Mm, Hybrid Ceramic Cylindrical Roller Bearings, Single Row
The NU 1012 M/HC5C3 Hybrid ceramic cylindrical roller bearings are widely used in high-speed, high-precision applications with the risk of shaft current, such as: high-speed electric spindles, machine tool spindles (machining centers, grinding machines), variable frequency motors, turbochargers, semiconductor equipment, and precision rotating mechanisms in aerospace.
The NU 1012 M/HC5C3 bearing is a Hybrid ceramic cylindrical roller bearings, single row with an inner diameter of 60 mm , an outer diameter of 95 mm, a width of 18 mm. It typically uses PN grade precision tolerances and GCr15SiMn rings, HC5 = Silicon nitride Si3N4 rolling mlement. Its dynamic radial rated load is approximately 37144 N, its static radial rated load is approximately 44691 N. It uses C3 standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
NU 1012 M/HC5C3 bearings ( 60 mm x 95 mm x 18 mm) have the advantages of Ceramic rolling elements achieve high speed, low heat generation, insulation and anti-electrolytic corrosion, while also possessing high radial load capacity and high rigidity, and are therefore widely used in the Machine tool electric spindles, high-speed motors, precision rolling mills, railway traction motors, and industrial robots.
| Part Number | NU 1012 M/HC5C3 |
| Interchangeable | SKF NU 1012 M/HC5C3 |
| Cage | M = Machined brass cage, roller centred |
| Bearing Type | Hybrid ceramic cylindrical roller bearings, single row |
| Load | radial |
| Accuracy class | PN |
| Coating | NO |
| Bearing part | Complete |
| Design | NU |
| Internal clearance | C3 |
| Row NO. | One |
| Heat stabilized | 150 °C (300 °F) |
| Seal | Open |
| Number of ring | outer ring(2), inner ring(0) |
| Units | Metric |
| Manufacturer Part Code | NU1012M/HC5C3 |
| Series | NU 10 sereis (NU 10..M/HC5C3) |
| Lubrication | NO |
| Locating feature | NO |
| Relubrication feature | NO |
| Loose flange | NO |
| Weight [lb] | 0.9700 |
| Cr Radial Dynamic [lbf] | 8349 |
| C0r Radial Static [lbf] | 10046 |
| Pu Fatigue load limit [lbf] | 1282 |
| nB Speed ratings (grease) [rpm] | 7954 |
| nG Speed ratings (oil) [rpm] | 7964 |
| d φ Inside [inch] | 2.3622 |
| D Φ Outside [inch] | 3.7402 |
| B Thickness [inch] | 0.7087 |
| F [inch] | 2.760 |
| r1,2 min Chamfer [inch] | 0.0433 |
| r3,4 min Chamfer [inch] | 0.0433 |
| D1 [inch] | 3.2126 |
| s max. Permissible axial displacement [inch] | 0.1142 |
| rb max Radius of fillet [inch] | 0.0394 |
| ra max Radius of fillet [inch] | 0.0394 |
| db min [inch] | 2.8346 |
| da min [inch] | 2.5433 |
| Da max [inch] | 3.504 |
| da max [inch] | 2.677 |
| kr Coefficient | 0.1 |
| Axial displacement capability | In both directions |
The NU 1012 M/HC5C3 Hybrid ceramic cylindrical roller bearings are primarily composed of high-precision bearing steel inner and outer rings, silicon nitride ceramic cylindrical rollers, and a cage (solid brass or outer ring guided type). The rollers and raceways are logarithmically modified, allowing for separability of the inner and outer rings, with precision grades ranging from P4 to P2.
The ceramic rollers in hybrid ceramic cylindrical roller bearings have low density and high elastic modulus, significantly reducing centrifugal force and increasing limiting speed by over 30%. The electrical insulation properties of the ceramic material effectively prevent electrolytic corrosion, making them suitable for applications with shaft current. They also feature a low coefficient of thermal expansion, low temperature rise, good thermal stability, low coefficient of friction, extended bearing life, and strong corrosion resistance.
