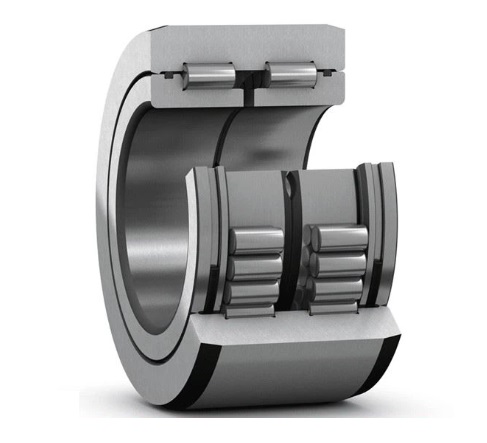

BNTB 326247/HB1 Bore 160 Mm, Four-row Cylindrical Roller Bearings (indexing Roller Units)

🔍

BNTB 326247/HB1

Bore Diameter:160 mm

Outside Diameter:250 mm

Width:140 mm

Weight:28.4 kg

Min. Order:1 Piece

The BNTB 326247/HB1

The BNTB 326247/HB1 bearing is a Four-row cylindrical roller bearings (indexing roller units) with an inner diameter of 160 mm , an outer diameter of 250 mm, a width of 140 mm. It typically uses PN grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic radial rated load is approximately 537824 N, its static radial rated load is approximately 829523 N. It uses CN standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

160 mm

Outside Diameter:

250 mm

Thickness:

140 mm

Weight:

28.4 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

537824 N

Static load Capacity, Radial (Cor):

829523 N

Specifications:

Structure:

Four-row cylindrical roller bearings

Number of Rows:

Four

Radial Clearance Trade No.:

Precision Rating:

Bearing Material:

GCr15SiMn

Cage Type:

Seals Type:

Open

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

System of Measurement:

Metric

Series:

BNTB 326../HB1

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

100 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

BNTB 326247/HB1 bearings ( 160 mm x 250 mm x 140 mm) have the advantages of ready-to-mount units, and are therefore widely used in the sintering and pelletizing plants.

Part Number	BNTB 326247/HB1
Interchangeable	SKF BNTB 326247/HB1
Cage	NO
Bearing Type	Four-row cylindrical roller bearings (indexing roller units)
Load	radial
Accuracy class	PN
Coating	NO
Bearing part	Complete
Design	BNTB
Internal clearance	CN
Row NO.	Four
Seal	Open
Sealing type	O-rings
Number of ring	outer ring(3), inner ring(2)
Units	Metric
Manufacturer Part Code	BNTB326247/HB1
Series	BNTB 326../HB1
Lubrication	Grease
Relubrication feature	Yes
Loose flange	NO
Weight [lb]	62.6106
C_r Radial Dynamic [lbf]	120902
C_0r Radial Static [lbf]	186476
P_u Fatigue load limit [lbf]	20157
F_r max. Dynamic radial loads [lbf]	69407
F_0r max. Static radial loads [lbf]	101100

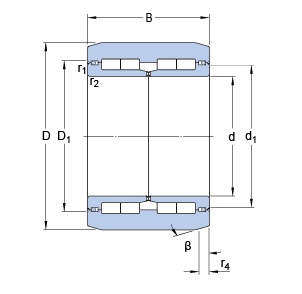

d φ Inside [inch]	6.2992
D Φ Outside [inch]	9.8425
B Thickness [inch]	5.5118
r1,2 min Chamfer [inch]	0.1181
r3,4 min Chamfer [inch]	0.5906
β Chamfer angle outer ring [°]	17
d₁ [inch]	7.7165
D₁ [inch]	7.7362

Share this product to:

Let more people see your product

How can you buy BNTB 326247/HB1 Bore 160 Mm, Four-row Cylindrical Roller Bearings (indexing Roller Units) on the Internet?
High quality BNTB 326247/HB1 ( 28.4 kg Mass, ID: 160 mm OD: 250 mm WD: 140 mm , BNTB 326../HB1 Series , Four Rows , CN Radial Clearance , PN Accuracy Class , GCr15SiMn Material , 537824 Radial dynamic , 829523 Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. BNTB 326247/HB1. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
