BC4-8037/HA1VA907 Four-row Cylindrical Roller Bearing For Rolling Mills, Stamping Steel Cage
The BC4-8037/HA1VA907 Four-row cylindrical roller bearings is suitable for heavy machinery applications that bear huge radial loads. Classic applications include: support rolls of rolling mills, large gearboxes, heavy machine tool spindles, wind turbine spindles, ship propulsion shafts, and rotor supports for high-power compressors.
The BC4-8037/HA1VA907 bearing is a Four-row cylindrical roller bearing for rolling mills with an inner diameter of 431.5 mm , an outer diameter of 571.5 mm, a width of 310 mm. GCr15, ZGCr15, GCr15SiMn, 20Cr2Ni4A rings, GCr15, ZGCr15, GCr15SiMn, 20Cr2Ni4A rolling mlement. Its dynamic radial rated load is approximately 4459115 N, its static radial rated load is approximately 10198353 N. It uses C4 standard radial clearance, Seal on one side type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
BC4-8037/HA1VA907 bearings ( 431.5 mm x 571.5 mm x 310 mm) have the advantages of Extremely high radial load capacity, high rigidity, separable design, and are therefore widely used in the metallurgical rolling mills, large gearboxes, and heavy-duty extrusion presses.
| Part Number | BC4-8037/HA1VA907 |
| Interchangeable | SKF BC4-8037/HA1VA907 |
| Bearing Type | Four-row cylindrical roller bearing for rolling mills |
| Cage | Stamping steel cage |
| Radial internal clearance | C4 |
| Seal | Seal on one side |
| Sealing type | Contact |
| Bore Type | Cylindrical bore |
| Design variant | BC4.23/W33WI |
| Series | BC4-80../HA1VA907 |
| Coating | Seal on one side |
| Units | Metric |
| Lubricant | No |
| Bearing part | Complete |
| Ring | outer ring(5),inner ring(0) |
| Flange | No |
| Relubrication | With |
| Heat stabilized | 150 °C(300 °F) |
| Cr Radial Dynamic [lbf] | 1002409 |
| C0r Radial Static [lbf] | 2292589 |
| Pu Fatigue load limit [lbf] | 197263 |

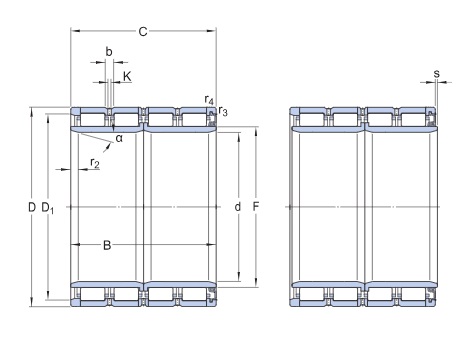

| Dimension | |
| d φ Inside [inch] | 16.988 |
| D Φ Outside [inch] | 22.500 |
| B Inner Width [inch] | 12.205 |
| C Outer Width [inch] | 12.205 |
| D1 [inch] | 20.890 |
| F [inch] | 18.307 |
| r1, r2(min.) [mm] | 12x20° |
| r3, r4(min.) [mm] | 2 |
| b angular groove [inch] | 0.657 |
| K lubrication hole [inch] | 0.354 |
| kr Calculation coefficient | 400 |
The BC4-8037/HA1VA907 Four-row cylindrical roller bearings mainly consist of an inner ring, an outer ring, four rows of cylindrical rollers, a cage, and a spacer. Common structures use a configuration of double outer rings (each with double raceways) and a single inner ring (with four raceways), or an interchangeable combination of inner and outer rings. Axial positioning and load distribution are achieved through the spacer.
The advantages of four-row cylindrical roller bearings are their extremely high radial load capacity, high rigidity, and the line contact between the rollers and raceways, resulting in a low coefficient of friction and allowing for high-speed operation under heavy loads. They can also be used as floating end bearings, capable of withstanding axial displacement caused by thermal expansion, and are easy to install and maintain.
