316977 C Bore 140 Mm, Full Complement Cylindrical Roller Bearings, Double Row (indexing Roller Units)

🔍

316977 C

Bore Diameter:140 mm

Outside Diameter:250 mm

Width:114 mm

Weight:26.7 kg

Min. Order:1 Piece

The 316977 C

The 316977 C bearing is a Full complement cylindrical roller bearings, double row (indexing roller units) with an inner diameter of 140 mm , an outer diameter of 250 mm, a width of 114 mm. It typically uses PN grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic radial rated load is approximately 526916 N, its static radial rated load is approximately 763961 N. It uses C3 standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

140 mm

Outside Diameter:

250 mm

Thickness:

114 mm

Weight:

26.7 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

526916 N

Static load Capacity, Radial (Cor):

763961 N

Specifications:

Structure:

Double-row full complement cylindrical roller bearings

Number of Rows:

Two

Radial Clearance Trade No.:

Precision Rating:

Bearing Material:

GCr15SiMn

Cage Type:

Seals Type:

Open

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

System of Measurement:

Metric

Series:

316.. C

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

100 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

316977 C bearings ( 140 mm x 250 mm x 114 mm) have the advantages of ready-to-mount units, and are therefore widely used in the sintering and pelletizing plants.

Part Number	316977 C
Interchangeable	SKF 316977 C
Cage	NO
Bearing Type	Full complement cylindrical roller bearings, double row (indexing roller units)
Load	radial
Accuracy class	PN
Coating	NO
Bearing part	Complete
Internal clearance	C3
Row NO.	Two
Seal	Open
Sealing type	O-rings
Number of ring	outer ring(3), inner ring(2)
Units	Metric
Manufacturer Part Code	316977C
Series	316.. C
Lubrication	Grease
Relubrication feature	Yes
Loose flange	NO
Weight [lb]	58.8628
C_r Radial Dynamic [lbf]	118450
C_0r Radial Static [lbf]	171738
P_u Fatigue load limit [lbf]	19213
F_r max. Dynamic radial loads [lbf]	75040
F_0r max. Static radial loads [lbf]	107852

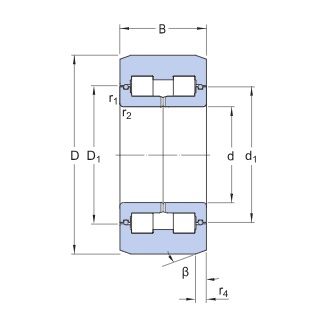

d φ Inside [inch]	5.5118
D Φ Outside [inch]	9.8425
B Thickness [inch]	4.4882
r1,2 min Chamfer [inch]	0.1181
r3,4 min Chamfer [inch]	0.5315
β Chamfer angle outer ring [°]	17
d₁ [inch]	7.3740
D₁ [inch]	7.4035
