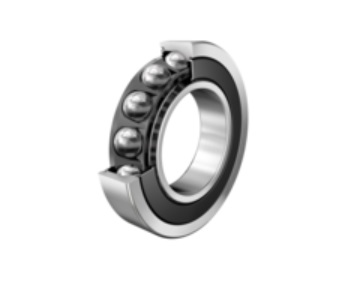

7212B.TVP Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

7212B.TVP

Bore Diameter:60 mm

Outside Diameter:110 mm

Width:22 mm

Weight:0.78 kg

Min. Order:1 Piece

The 7212B.TVP

The 7212B.TVP bearing is a Angular contact ball bearings, single row with an inner diameter of 60 mm , an outer diameter of 110 mm, a width of 22 mm. It typically uses P6 grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 61954 N, its static radial rated load is approximately 44999 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 7212-B-TVP,7212B.TVP

Dimensions:

Inside Diameter:

60 mm

Outside Diameter:

110 mm

Thickness:

22 mm

Weight:

0.78 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

61954 N

Static load Capacity, Radial (Cor):

44999 N

Fatigue Load Limit, Radial:

3140 N

Reference speed (Grease rpm):

6195

Limiting speed (Oil rpm):

8272

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

Open

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-30 to 120 °C

Series:

72..-B-XL-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	7212B.TVP
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	72..-B-XL-TVP
X-Life	XL long life design
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	7212-B-TVP
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Equivalent	7212-B-TVP,7212B.TVP
Lubricant	Without
Seal type	Open
Heat stabilization	S0 = up to 150°
m Weight [kg]	0.78
Reference From	FAG 7212B.TVP
Dimensions
d φ Inside [inch]	2.362
D Φ Outside [inch]	4.331
B Width [inch]	0.866
r(min.) [inch]	0.059
r₁(min.) [inch]	0.039
D₁ [inch]	3.576
d₁ [inch]	3.162
a [inch]	1.839
Performance
C_r Radial Dynamic [N]	61954
C_0r Radial static [N]	44999
C_ur Radial Fatigue [N]	3140
n_G Limiting speed (oil) [r/min]	8272
n_B Reference speed (grease) [r/min]	6195
Mounting dimensions
d_a(min.) [inch]	2.717
D_a(max.) [inch]	3.976
D_b(max.) [inch]	4.110
r_a(max.) [inch]	0.059
r_a1(max.) [inch]	0.039
