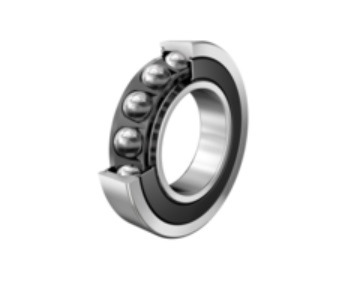

7200B.2RS.TVP Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

7200B.2RS.TVP

Bore Diameter:10 mm

Outside Diameter:30 mm

Width:9 mm

Weight:0.047 kg

Min. Order:1 Piece

The 7200B.2RS.TVP

The 7200B.2RS.TVP bearing is a Angular contact ball bearings, single row with an inner diameter of 10 mm , an outer diameter of 30 mm, a width of 9 mm. It typically uses P6 grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 5563 N, its static radial rated load is approximately 2590 N. 2RS = Contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 7200-B-2RS-TVP,7200B.2RS.TVP

Dimensions:

Inside Diameter:

10 mm

Outside Diameter:

30 mm

Thickness:

9 mm

Weight:

0.047 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

5563 N

Static load Capacity, Radial (Cor):

2590 N

Fatigue Load Limit, Radial:

173 N

Limiting speed (Oil rpm):

16098

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

2RS = Contact seal on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 100 °C

Series:

72..-B-XL-2RS-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	7200B.2RS.TVP
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	72..-B-XL-2RS-TVP
X-Life	XL long life design
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	7200-B-2RS-TVP
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Equivalent	7200-B-2RS-TVP,7200B.2RS.TVP
Lubricant	GA14 = Ball bearing grease, low noise
Seal type	2RS = Contact seal on both sides
Heat stabilization	S0 = up to 150°
m Weight [kg]	0.047
Reference From	FAG 7200B.2RS.TVP
Dimensions
d φ Inside [inch]	0.394
D Φ Outside [inch]	1.181
B Width [inch]	0.354
r(min.) [inch]	0.024
r₁(min.) [inch]	0.012
D₁ [inch]	0.867
D₂ [inch]	0.912
D₃ [inch]	1.001
d₁ [inch]	0.719
d₂ [inch]	0.611
a [inch]	0.508
Performance
C_r Radial Dynamic [N]	5563
C_0r Radial static [N]	2590
C_ur Radial Fatigue [N]	173
n_G Limiting speed (oil) [r/min]	16098
Mounting dimensions
d_a(min.) [inch]	0.559
D_a(max.) [inch]	1.016
D_b(max.) [inch]	1.087
r_a(max.) [inch]	0.024
r_a1(max.) [inch]	0.012
