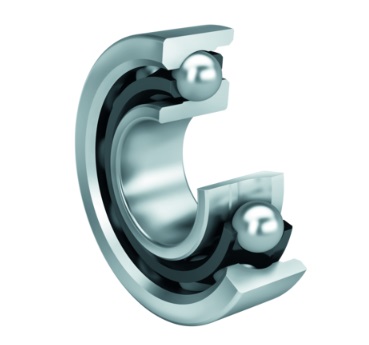

7207B.TVP Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

7207B.TVP

Bore Diameter:35 mm

Outside Diameter:72 mm

Width:17 mm

Weight:0.282 kg

Min. Order:1 Piece

The 7207B.TVP

The 7207B.TVP bearing is a Angular contact ball bearings, single row with an inner diameter of 35 mm , an outer diameter of 72 mm, a width of 17 mm. It typically uses P6 grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 29995 N, its static radial rated load is approximately 18960 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 7207-B-TVP,7207B.TVP

Dimensions:

Inside Diameter:

35 mm

Outside Diameter:

72 mm

Thickness:

17 mm

Weight:

0.282 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

29995 N

Static load Capacity, Radial (Cor):

18960 N

Fatigue Load Limit, Radial:

1306 N

Reference speed (Grease rpm):

9595

Limiting speed (Oil rpm):

13389

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

Open

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-30 to 120 °C

Series:

72..-B-XL-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	7207B.TVP
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	72..-B-XL-TVP
X-Life	XL long life design
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	7207-B-TVP
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Equivalent	7207-B-TVP,7207B.TVP
Lubricant	Without
Seal type	Open
Heat stabilization	S0 = up to 150°
m Weight [kg]	0.282
Reference From	FAG 7207B.TVP
Dimensions
d φ Inside [inch]	1.378
D Φ Outside [inch]	2.835
B Width [inch]	0.669
r(min.) [inch]	0.043
r₁(min.) [inch]	0.024
D₁ [inch]	2.269
d₁ [inch]	1.975
a [inch]	1.217
Performance
C_r Radial Dynamic [N]	29995
C_0r Radial static [N]	18960
C_ur Radial Fatigue [N]	1306
n_G Limiting speed (oil) [r/min]	13389
n_B Reference speed (grease) [r/min]	9595
Mounting dimensions
d_a(min.) [inch]	1.654
D_a(max.) [inch]	2.559
D_b(max.) [inch]	2.669
r_a(max.) [inch]	0.039
r_a1(max.) [inch]	0.024
