566447 Bore 160 Mm, Tapered Roller Thrust Bearings, Double Row For Oil Film Bearings
The 566447 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 566447 bearing is a Tapered Roller Thrust Bearings, double row for oil film bearings with an inner diameter of 160 mm , an outer diameter of 220 mm, a width of 50 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, Its dynamic radial rated load is approximately 245000 N, its static radial rated load is approximately 510000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
566447 bearings ( 160 mm x 220 mm x 50 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 566447 |
| Interchangeable | FAG 566447 |

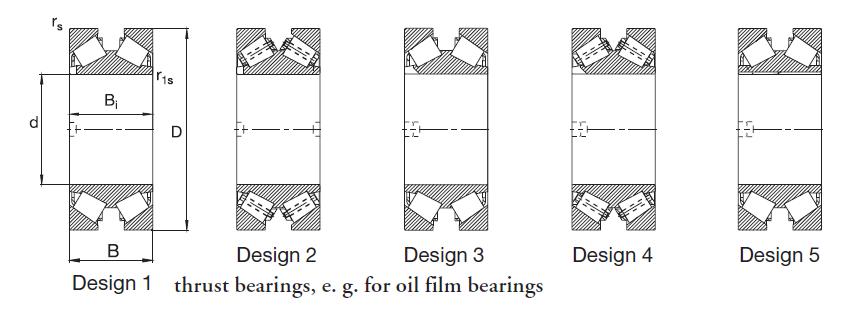

| Desgin Figure | 1 |
| Cage | Stamping steel cage |
| Arrangement | face-to-face (><) |
| Seal | Open |
| Bearing Type | Tapered Roller Thrust Bearings, double row for oil film bearings |
| Bearing Weight [lb] | 12.478 |
| d φ Inside [inch] | 6.299 |
| D Φ Outside [inch] | 8.661 |
| B Width [inch] | 1.969 |
| Bi Width [inch] | 1.969 |
| rs min Chamfer Cup | 2 mm |
| r1s min Chamfer Cone | 2 mm |
| Cr Radial Dynamic [lbf] | 55076 |
| C0r Radial Static [lbf] | 114648 |
| Y | 1.16 |
