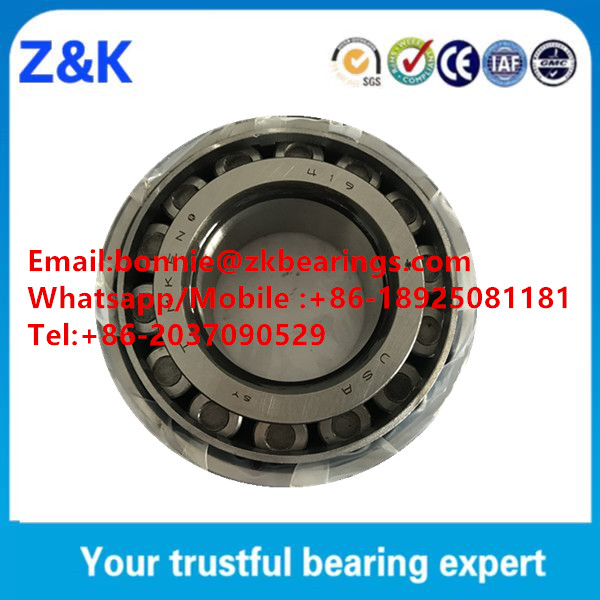

419-414 Tapered Roller Bearings With High Speed

🔍

419-414

Bore Diameter:41.275 mm

Outside Diameter:88.501 mm

Width:29.083 mm

Weight:0.8 kg

Min. Order:2 Piece

The 419-414 bearing is a Tapered Roller Bearings with an inner diameter of 41.275 mm , an outer diameter of 88.501 mm, a width of 29.083 mm. It typically uses p0/p6/p5/p4/p2 grade precision tolerances and features a Steel cage, Steel balls, steel rings. It primarily bears Radial Bearing, Its dynamic radial rated load is approximately 116000 N, It uses C0 C2 C3 C4 C5 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: Reducer, Papermaking Machinery, Railway Vehicle

Application: Automotive, rolling mill, mining, metallurgical, skateboard etc.

Dimensions:

Inside Diameter:

41.275 mm

Outside Diameter:

88.501 mm

Thickness:

29.083 mm

Weight:

0.8 KG

Chamfer (R):

3.56mm

Cone Width (B):

29.083

Cup Width (C):

22.225

Chamfer (r):

1.52mm

Performance Data:

Dynamic load Capacity, Radial (Cr):

116000 N

Specifications:

HS Code:

8482102000

Structure:

roller Bearing

Demensions:

41.275*88.501*29.083

Brand:

Z&K/Neutral / OEM

Radial Clearance Trade No.:

C0 C2 C3 C4 C5

Precision Rating:

p0/p6/p5/p4/p2

Vibration:

Z1V1 Z2V2 Z3V3

Load Direction:

Radial Bearing

Bearing Material:

Bearing Steel

Cage material:

Steel

Ball Material:

Steel

Roller Material:

steel

Series:

415

Cone Number:

419

Cup Number:

414

Transaction Information:

Transport Package:

Single Box, Plastic Barrel, Carton, Tray

Shipping Ways:

Sea, land and air transport

Country of Origin:

China

Stock:

10 Piece

Production Capacity:

1000PCS/Year

Port:

Guangzhou

Payment term:

TT/PAPAL/WESTERN UNION

Delivery time:

7-15

Detailed description

419-414 Tapered Roller Bearings
419-414 Tapered Roller Bearings
Bearing NO.:	419-414	MOQ:	1PCS
Series:	415	Material	Bearing steel
Cone Part NO.:	419	Aa (mm):	0.8
Cup Part NO.:	414	Ab (mm):	1.5
Bore (mm)b:	41.275	Db (mm):	76.96
Cup Outer Diameter(mm)D:	88.501	db(mm):	54
Cone Width(mm)B:	29.083	Da(mm):	80.77
Cup Width(mm)C:	22.225	da (mm):	47
Bearing Width (mm)T:	26.988	r (mm):	1.52
Weight (kg):	0.8	R(mm):	3.56
Dynamic load rating (C₉₀)N:	30000	K:	2.22
Dynamic load rating (C₁)N:	116000	e :	0.26
Static Radial Rating (CO)N:	124000	Y :	2.28
Dynamic Thrust Ratin(Ca₉₀)N:	13500	Cg:	0.0731
Applicable Industries:	Manufacturing Plant,Home Use, Printing Shops,Construction works,Advertising Company	Contact Bonnie:	Email:[email protected]
Applicable Industries:		Contact Bonnie:	Email:[email protected]

Share this product to:

Let more people see your product

How can you buy 419-414 Tapered Roller Bearings With High Speed on the Internet?
High quality 419-414 ( 0.8 kg Mass, ID: 41.275 mm OD: 88.501 mm WD: 29.083 mm , 415 Series , C0 C2 C3 C4 C5 Radial Clearance , p0/p6/p5/p4/p2 Accuracy Class , Bearing Steel Material , 116000 N Radial dynamic ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 419-414. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
