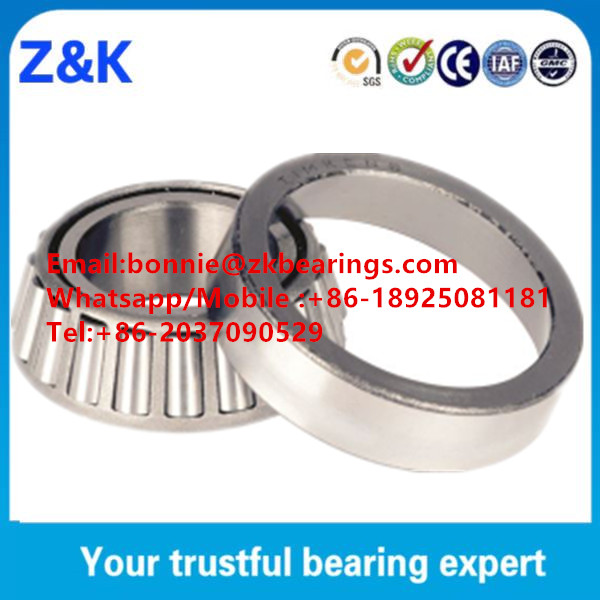

559-552A High Speed Tapered Roller Bearings

🔍

559-552A

Bore Diameter:63.5 mm

Outside Diameter:123.825 mm

Width:36.678 mm

Min. Order:2 Piece

The 559-552A bearing is a Tapered Roller Bearings with an inner diameter of 63.5 mm , an outer diameter of 123.825 mm, a width of 36.678 mm. It typically uses p0/p6/p5/p4/p2 grade precision tolerances and features a Steel cage, Steel balls, steel rings. It primarily bears Radial Bearing, Its dynamic radial rated load is approximately 226000, It uses C0 C2 C3 C4 C5 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: Reducer, Papermaking Machinery, Railway Vehicle

Application: Automotive, rolling mill, mining, metallurgical, skateboard etc.

Dimensions:

Inside Diameter:

63.5 mm

Outside Diameter:

123.825 mm

Thickness:

36.678 mm

Chamfer (R):

3.6mm

Cone Width (B):

36.678

Cup Width (C):

30.163

Chamfer (r):

3.3mm

Performance Data:

Dynamic load Capacity, Radial (Cr):

226000

Specifications:

HS Code:

8482102000

Structure:

roller Bearing

Demensions:

63.5*123.825*36.678

Brand:

Z&K/Neutral / OEM

Radial Clearance Trade No.:

C0 C2 C3 C4 C5

Precision Rating:

p0/p6/p5/p4/p2

Vibration:

Z1V1 Z2V2 Z3V3

Load Direction:

Radial Bearing

Bearing Material:

Bearing Steel

Cage material:

Steel

Ball Material:

Steel

Roller Material:

steel

Series:

555

Cone Number:

559

Cup Number:

552A

Transaction Information:

Transport Package:

Single Box, Plastic Barrel, Carton, Tray

Shipping Ways:

Sea, land and air transport

Country of Origin:

China

Stock:

10 Piece

Production Capacity:

1000PCS/Year

Port:

Guangzhou

Payment term:

TT/PAPAL/WESTERN UNION

Delivery time:

7-15

Detailed description

559-552A High Speed Tapered Roller Bearings
559-552A High Speed Tapered Roller Bearings
Bearing NO.:	559-552A	MOQ:	1PCS
Series:	555	Material	Bearing steel
Cone Part NO.:	559	Aa (mm):	1.8
Cup Part NO.:	552A	Ab (mm):	2
Bore (mm)b:	63.5	Db (mm):	108.97
Cup Outer Diameter(mm)D:	123.825	db(mm):	81
Cone Width(mm)B:	36.678	Da(mm):	116.1
Cup Width(mm)C:	30.163	da (mm):	75
Bearing Width (mm)T:	38.1	r (mm):	3.3
Weight (kg):	2	R(mm):	3.6
Dynamic load rating (C₉₀)N:	58600	K:	1.69
Dynamic load rating (C₁)N:	226000	e :	0.35
Static Radial Rating (CO)N:	248000	Y :	1.73
Dynamic Thrust Ratin(Ca₉₀)N:	34700	a:	-9.4
Applicable Industries:	Manufacturing Plant,Home Use, Printing Shops,Construction works,Advertising Company	Contact Bonnie:	Email:[email protected]
Applicable Industries:		Contact Bonnie:	Email:[email protected]

Share this product to:

Let more people see your product

How can you buy 559-552A High Speed Tapered Roller Bearings on the Internet?
High quality 559-552A ( ID: 63.5 mm OD: 123.825 mm WD: 36.678 mm , 555 Series , C0 C2 C3 C4 C5 Radial Clearance , p0/p6/p5/p4/p2 Accuracy Class , Bearing Steel Material , 226000 Radial dynamic ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 559-552A. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- L555249-902A5 Tapered Roller Bearings With Low Voice
- L555249-902A5 accommodates combined loads and provides low friction during operation. By adjusting

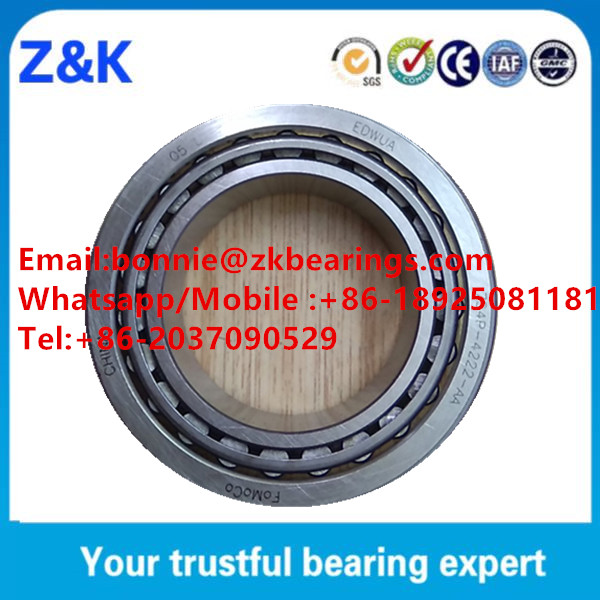

- 7S4P-4221-AA Tapered Roller Bearing Auto Gearbox Bearing
