5535-5584 Single Row High Speed Tapered Roller Bearings

🔍

5535-5584

Bore Diameter:63.5 mm

Outside Diameter:122.238 mm

Width:43.764 mm

Min. Order:1 Piece

The 5535-5584 bearing is a Tapered Roller Bearings with an inner diameter of 63.5 mm , an outer diameter of 122.238 mm, a width of 43.764 mm. It typically uses p0/p6/p5/p4/p2 grade precision tolerances and features a Steel cage, Steel balls, Steel rings. It primarily bears Radial Bearing, Its dynamic radial rated load is approximately 280000, its static radial rated load is approximately 327000. It uses C0 C2 C3 C4 C5 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: High speed, low voice & long life.

Application: Automotive, rolling mill, mining, metallurgical, skateboard etc.

Dimensions:

Inside Diameter:

63.5 mm

Outside Diameter:

122.238 mm

Thickness:

43.764 mm

Chamfer (R):

3.6

Cone Width (B):

43.764

Cup Width (C):

36.513

Chamfer (r):

3.3

Performance Data:

Dynamic load Capacity, Radial (Cr):

280000

Static load Capacity, Radial (Cor):

327000

Specifications:

HS Code:

8482102000

Structure:

roller Bearing

Number of Rows:

Single

Demensions:

63.5*122.238*43.764

Brand:

Z&K/Neutral / OEM

Radial Clearance Trade No.:

C0 C2 C3 C4 C5

Precision Rating:

p0/p6/p5/p4/p2

Vibration:

Z1V1 Z2V2 Z3V3

Load Direction:

Radial Bearing

Bearing Material:

Bearing Steel

Cage material:

Steel

Ball Material:

Steel

Roller Material:

Steel

Series:

5500

Cone Number:

5535

Cup Number:

5584

Transaction Information:

Transport Package:

Single Box, Plastic Barrel, Carton, Tray

Shipping Ways:

Sea, land and air transport

Country of Origin:

China

Stock:

1000 Piece

Production Capacity:

10000/year

Port:

Guangzhou

Payment term:

TT/PAPAL/WESTERN UNION

Delivery time:

7-15

Detailed description

5535-5584 Single Row High Speed Tapered Roller Bearings
5535-5584 Single Row High Speed Tapered Roller Bearings
Bearing NO.:	5535-5584	MOQ:	1PCS
Series:	5500	Material	Bearing steel
Cone Part NO.:	5584	Aa (mm):	1.8
Cup Part NO.:	5535	Ab (mm):	2
Bore (mm)d:	63.5	Db (mm):	105.92
Cup Outer Diameter(mm)D:	122.238	db(mm):	81
Cone Width(mm)B:	43.764	R(mm):	3.6
Cup Width(mm)C:	36.513	r (mm):	3.3
Bearing Width (mm)T:	43.658	Da(mm):	116.1
a:	-12.2	da (mm):	75
Dynamic load rating (C₉₀)N:	72700	K:	1.63
Dynamic load rating (C₁)N:	280000	e:	0.36
Static Radial Rating (CO)N:	327000	Y:	1.67
Dynamic Thrust Ratin(Ca₉₀)N:	44600	Cg:	0.0825
Applicable Industries:	Manufacturing Plant,Home Use, Printing Shops,Construction works,Advertising Company	Contact Bonnie:	Email:[email protected]
Applicable Industries:		Contact Bonnie:	Email:[email protected]

Share this product to:

Let more people see your product

How can you buy 5535-5584 Single Row High Speed Tapered Roller Bearings on the Internet?
High quality 5535-5584 ( ID: 63.5 mm OD: 122.238 mm WD: 43.764 mm , 5500 Series , Single Rows , C0 C2 C3 C4 C5 Radial Clearance , p0/p6/p5/p4/p2 Accuracy Class , Bearing Steel Material , 280000 Radial dynamic , 327000 Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 5535-5584. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

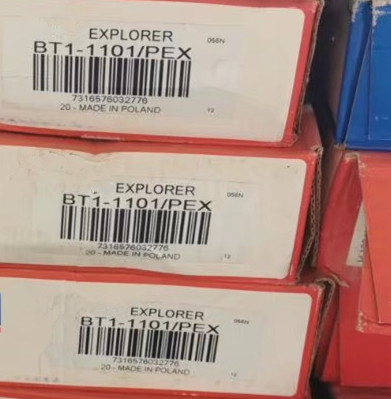

- BT1-1101/PEX Single Row Tapered Roller Bearing 69.85x146.05x41.275 mm
