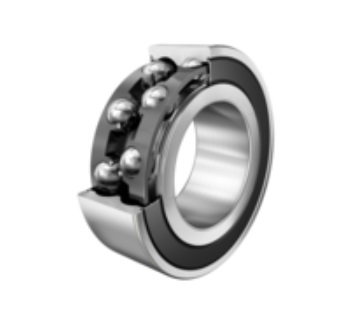

38052Z Solid Polyamide Snap Cage Angular Contact Ball Bearings, Sealed

🔍

38052Z

Bore Diameter:25 mm

Outside Diameter:37 mm

Width:10 mm

Weight:0.036 kg

Min. Order:1 Piece

The 38052Z

The 38052Z bearing is a Angular contact ball bearings Double row sealed with an inner diameter of 25 mm , an outer diameter of 37 mm, a width of 10 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 5878 N, its static radial rated load is approximately 5478 N. It uses CN standard radial clearance, 2RZ = Non-contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 3805 2Z

Dimensions:

Inside Diameter:

25 mm

Outside Diameter:

37 mm

Thickness:

10 mm

Weight:

0.036 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

5878 N

Static load Capacity, Radial (Cor):

5478 N

Fatigue Load Limit, Radial:

278 N

Reference speed (Grease rpm):

10291

Limiting speed (Oil rpm):

15288

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

double

Radial Clearance Trade No.:

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVH = Solid polyamide snap cage, ball-guided

Seals Type:

2RZ = Non-contact seal on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 100 °C

Series:

38..-B-2RZ-TVH

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	38052Z
Design Type	B = Bearing without filling slot
Bearing Type	Angular contact ball bearings Double row sealed
Series	38..-B-2RZ-TVH
Contact angle - α [°]	25
Rows NO.	double
Manufacturer Part Code	3805-2Z
Radial internal clearances	CN
Cage	TVH = Solid polyamide snap cage, ball-guided
Equivalent	3805 2Z
Lubricant	GA14 = Ball bearing grease, low noise
Seal type	2RZ = Non-contact seal on both sides
Heat stabilization	SN = up to 120°
m Weight [kg]	0.036
Reference From	FAG 38052Z

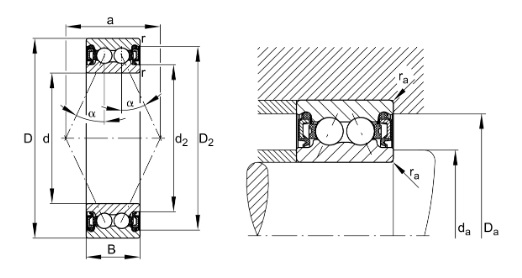

Dimensions
d φ Inside [inch]	0.984
D Φ Outside [inch]	1.457
B Width [inch]	0.394
r(min.) [inch]	0.012
D₁ [inch]	1.304
D₂ [inch]	1.340
d₁ [inch]	1.146
d₂ [inch]	1.099
a [inch]	0.705
Performance
C_r Radial Dynamic [N]	5878
C_0r Radial static [N]	5478
C_ur Radial Fatigue [N]	278
n_G Limiting speed (oil) [r/min]	15288
n_B Reference speed (grease) [r/min]	10291
Mounting dimensions
d_a(min.) [inch]	1.063
D_a(max.) [inch]	1.378
r_a(max.) [inch]	0.012
