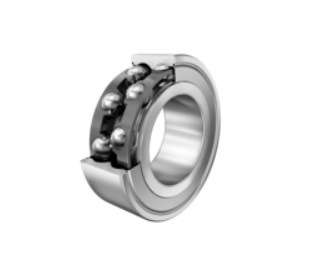

30072RS Solid Polyamide Snap Cage Angular Contact Ball Bearings, Sealed

🔍

30072RS

Bore Diameter:35 mm

Outside Diameter:62 mm

Width:20 mm

Weight:0.217 kg

Min. Order:1 Piece

The 30072RS

The 30072RS bearing is a Angular contact ball bearings Double row sealed with an inner diameter of 35 mm , an outer diameter of 62 mm, a width of 20 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 23993 N, its static radial rated load is approximately 19062 N. It uses CN standard radial clearance, 2RS = Contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 3007 2RS

Dimensions:

Inside Diameter:

35 mm

Outside Diameter:

62 mm

Thickness:

20 mm

Weight:

0.217 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

23993 N

Static load Capacity, Radial (Cor):

19062 N

Fatigue Load Limit, Radial:

991 N

Limiting speed (Oil rpm):

6375

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

double

Radial Clearance Trade No.:

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVH = Solid polyamide snap cage, ball-guided

Seals Type:

2RS = Contact seal on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 100 °C

Series:

30..-B-2RS-TVH

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	30072RS
Design Type	B = Bearing without filling slot
Bearing Type	Angular contact ball bearings Double row sealed
Series	30..-B-2RS-TVH
Contact angle - α [°]	25
Rows NO.	double
Manufacturer Part Code	3007-2RS
Radial internal clearances	CN
Cage	TVH = Solid polyamide snap cage, ball-guided
Equivalent	3007 2RS
Lubricant	GA14 = Ball bearing grease, low noise
Seal type	2RS = Contact seal on both sides
Heat stabilization	SN = up to 120°
m Weight [kg]	0.217
Reference From	FAG 30072RS

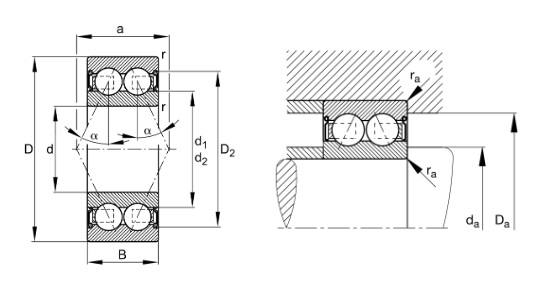

Dimensions
d φ Inside [inch]	1.378
D Φ Outside [inch]	2.441
B Width [inch]	0.787
r(min.) [inch]	0.039
D₁ [inch]	2.098
D₂ [inch]	2.177
d₁ [inch]	1.720
d₂ [inch]	1.593
a [inch]	1.217
Performance
C_r Radial Dynamic [N]	23993
C_0r Radial static [N]	19062
C_ur Radial Fatigue [N]	991
n_G Limiting speed (oil) [r/min]	6375
Mounting dimensions
d_a(min.) [inch]	1.559
D_a(max.) [inch]	2.260
r_a(max.) [inch]	0.039
