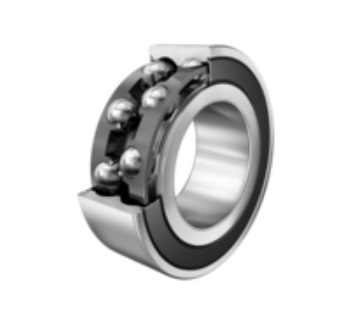

30042RS Solid Polyamide Snap Cage Angular Contact Ball Bearings, Sealed

🔍

30042RS

Bore Diameter:20 mm

Outside Diameter:42 mm

Width:16 mm

Weight:0.091 kg

Min. Order:1 Piece

The 30042RS

The 30042RS bearing is a Angular contact ball bearings Double row sealed with an inner diameter of 20 mm , an outer diameter of 42 mm, a width of 16 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 14282 N, its static radial rated load is approximately 9361 N. It uses CN standard radial clearance, 2RS = Contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 3004 2RS

Dimensions:

Inside Diameter:

20 mm

Outside Diameter:

42 mm

Thickness:

16 mm

Weight:

0.091 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

14282 N

Static load Capacity, Radial (Cor):

9361 N

Fatigue Load Limit, Radial:

475 N

Limiting speed (Oil rpm):

10472

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

double

Radial Clearance Trade No.:

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVH = Solid polyamide snap cage, ball-guided

Seals Type:

2RS = Contact seal on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 100 °C

Series:

30..-B-2RS-TVH

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	30042RS
Design Type	B = Bearing without filling slot
Bearing Type	Angular contact ball bearings Double row sealed
Series	30..-B-2RS-TVH
Contact angle - α [°]	25
Rows NO.	double
Manufacturer Part Code	3004-2RS
Radial internal clearances	CN
Cage	TVH = Solid polyamide snap cage, ball-guided
Equivalent	3004 2RS
Lubricant	GA14 = Ball bearing grease, low noise
Seal type	2RS = Contact seal on both sides
Heat stabilization	SN = up to 120°
m Weight [kg]	0.091
Reference From	FAG 30042RS
Dimensions
d φ Inside [inch]	0.787
D Φ Outside [inch]	1.654
B Width [inch]	0.630
r(min.) [inch]	0.024
D₁ [inch]	1.378
D₂ [inch]	1.432
d₁ [inch]	1.067
d₂ [inch]	0.996
a [inch]	0.831
Performance
C_r Radial Dynamic [N]	14282
C_0r Radial static [N]	9361
C_ur Radial Fatigue [N]	475
n_G Limiting speed (oil) [r/min]	10472
Mounting dimensions
d_a(min.) [inch]	0.913
D_a(max.) [inch]	1.528
r_a(max.) [inch]	0.024
