Z-543463.AR Axial Cylindrical Roller Bearings Split, Single Direction, Double Row

🔍

Z-543463.AR

Bore Diameter:482 mm

Outside Diameter:736.6 mm

Width:146.1 mm

Weight:265 kg

Min. Order:1 Piece

The Z-543463.AR Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The Z-543463.AR bearing is a Axial cylindrical roller bearings Split, Single direction, Double row with an inner diameter of 482 mm , an outer diameter of 736.6 mm, a width of 146.1 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 5196312 N, its static axial rated load is approximately 24498092 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

482 mm

Outside Diameter:

736.6 mm

Thickness:

146.1 mm

Weight:

265 KG

Dynamic load Capacity, axial:

5196312 N

Static load Capacity, axial:

24498092 N

Fatigue Load Limit, Axial:

1667972 N

Limiting speed (Oil rpm):

525

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

GCr15SiMn

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 150 °C

System of Measurement:

Metric

Series:

Z-543..AR

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-543463.AR bearings ( 482 mm x 736.6 mm x 146.1 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	Z-543463.AR
Bearing Type	Axial cylindrical roller bearings Split, Single direction, Double row

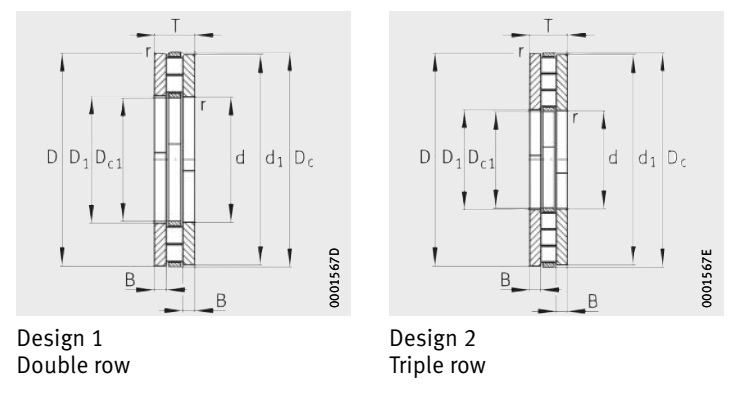

Design	1
Series	Z-543..AR
Accuracy class	PN (ABEC-1)
Rows NO.	Two
Weight [lb]	584.2190
C_a Axial Dynamic [lbf]	1168130
C_0a Axial static [lbf]	5507171
C_ua Axial Fatigue [lbf]	374960
n_G Speed ratings (oil) [rpm]	525

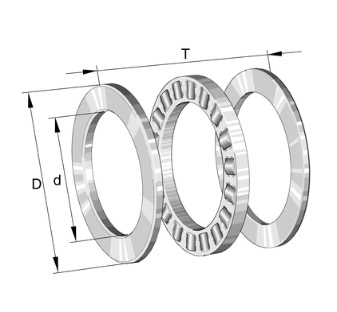

d φ Inside [inch]	18.9763
D Φ Outside [inch]	28.9999
T Thickness [inch]	5.7520
B Width [inch]	1.8524
D₁ [inch]	18.9763
d₁ [inch]	28.9999
D_c [inch]	29.3700
D_c1 [inch]	18.0000
r(min.) [inch]	0.2953

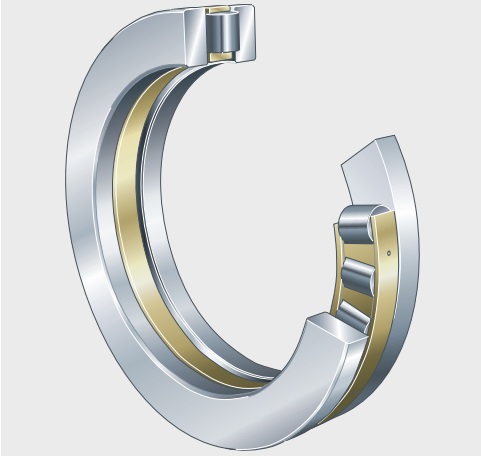

The Z-543463.AR Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
