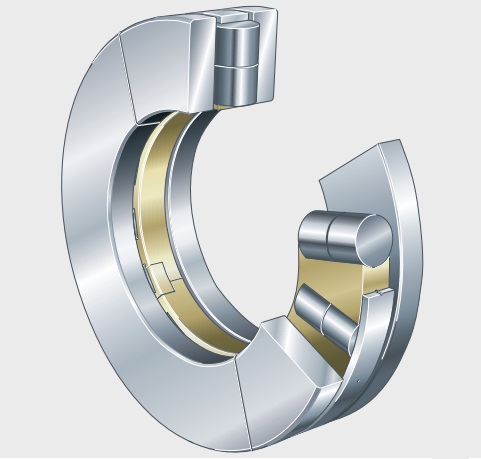

Z-543424.AR Axial Cylindrical Roller Bearings Split, Single Direction, Double Row

🔍

Z-543424.AR

Bore Diameter:330 mm

Outside Diameter:495.3 mm

Width:88.9 mm

Weight:66.4 kg

Min. Order:1 Piece

The Z-543424.AR Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The Z-543424.AR bearing is a Axial cylindrical roller bearings Split, Single direction, Double row with an inner diameter of 330 mm , an outer diameter of 495.3 mm, a width of 88.9 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 2278394 N, its static axial rated load is approximately 9998197 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

330 mm

Outside Diameter:

495.3 mm

Thickness:

88.9 mm

Weight:

66.4 KG

Dynamic load Capacity, axial:

2278394 N

Static load Capacity, axial:

9998197 N

Fatigue Load Limit, Axial:

746966 N

Limiting speed (Oil rpm):

744

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

GCr15SiMn

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 150 °C

System of Measurement:

Metric

Series:

Z-543..AR

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-543424.AR bearings ( 330 mm x 495.3 mm x 88.9 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	Z-543424.AR
Bearing Type	Axial cylindrical roller bearings Split, Single direction, Double row
Design	1
Series	Z-543..AR
Accuracy class	PN (ABEC-1)
Rows NO.	Two
Weight [lb]	146.3854
C_a Axial Dynamic [lbf]	512182
C_0a Axial static [lbf]	2247594
C_ua Axial Fatigue [lbf]	167917
n_G Speed ratings (oil) [rpm]	744
d φ Inside [inch]	12.9921
D Φ Outside [inch]	19.5000
T Thickness [inch]	3.5000
B Width [inch]	1.0807
D₁ [inch]	12.9921
d₁ [inch]	19.5000
D_c [inch]	19.4882
D_c1 [inch]	12.5000
r(min.) [inch]	0.1969

The Z-543424.AR Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.

Share this product to:

Let more people see your product

How can you buy Z-543424.AR Axial Cylindrical Roller Bearings Split, Single Direction, Double Row on the Internet?
High quality Z-543424.AR ( 66.4 kg Mass, ID: 330 mm OD: 495.3 mm WD: 88.9 mm , Z-543..AR Series , Two Rows , PN (ABEC-1) Accuracy Class , GCr15SiMn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. Z-543424.AR. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
