Z-507133.AR Axial Cylindrical Roller Bearings, Double Direction

🔍

Z-507133.AR

Bore Diameter:500 mm

Outside Diameter:670 mm

Width:206 mm

Weight:196 kg

Min. Order:1 Piece

The Z-507133.AR Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The Z-507133.AR bearing is a Axial cylindrical roller bearings, Double direction with an inner diameter of 500 mm , an outer diameter of 670 mm, a width of 206 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 2645301 N, its static axial rated load is approximately 11987296 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

500 mm

Outside Diameter:

670 mm

Thickness:

206 mm

Weight:

196 KG

Dynamic load Capacity, axial:

2645301 N

Static load Capacity, axial:

11987296 N

Fatigue Load Limit, Axial:

829453 N

Limiting speed (Oil rpm):

517

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

GCr15SiMn

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 150 °C

System of Measurement:

Metric

Series:

Z-507..AR

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-507133.AR bearings ( 500 mm x 670 mm x 206 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	Z-507133.AR
Bearing Type	Axial cylindrical roller bearings, Double direction
Series	Z-507..AR
Accuracy class	PN (ABEC-1)
Rows NO.	Two
Weight [lb]	432.1016
C_a Axial Dynamic [lbf]	594663
C_0a Axial static [lbf]	2694744
C_ua Axial Fatigue [lbf]	186461
n_G Speed ratings (oil) [rpm]	517
d φ Inside [inch]	19.6850
D Φ Outside [inch]	26.3779
T Thickness [inch]	8.1102
B Width [inch]	2.1260
D₁ [inch]	21.4566
r₁ (min.) [inch]	0.1181
d₁ [inch]	26.2204
D_c1 [inch]	21.0630
r(min.) [inch]	0.1969
Mounting dimensions
d_a [inch]	21.0630
D_a(max.) [inch]	22.0078
r_a(max.) [inch]	0.1575
r_a1(max.) [inch]	0.0984

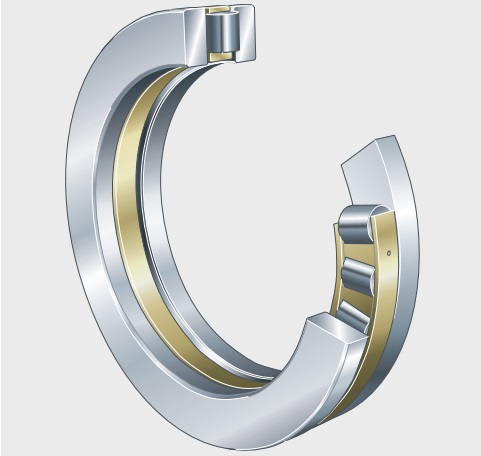

The Z-507133.AR Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
