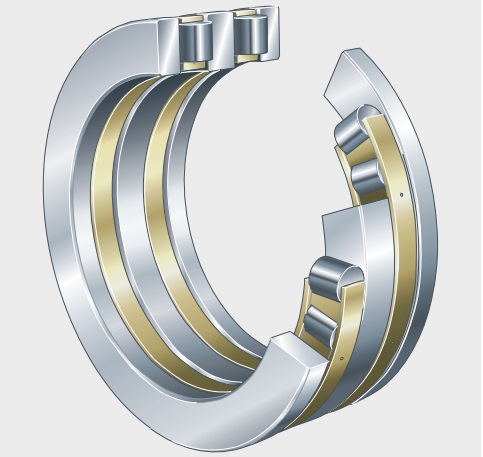

Z-507132.AR-MBS Axial Cylindrical Roller Bearings, Double Direction

🔍

Z-507132.AR-MBS

Bore Diameter:480 mm

Outside Diameter:650 mm

Width:206 mm

Weight:182 kg

Min. Order:1 Piece

The Z-507132.AR-MBS Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The Z-507132.AR-MBS bearing is a Axial cylindrical roller bearings, Double direction with an inner diameter of 480 mm , an outer diameter of 650 mm, a width of 206 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 2595513 N, its static axial rated load is approximately 11796482 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

480 mm

Outside Diameter:

650 mm

Thickness:

206 mm

Weight:

182 KG

Dynamic load Capacity, axial:

2595513 N

Static load Capacity, axial:

11796482 N

Fatigue Load Limit, Axial:

806922 N

Limiting speed (Oil rpm):

525

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

GCr15SiMn

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 150 °C

System of Measurement:

Metric

Series:

Z-507..AR-MBS

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-507132.AR-MBS bearings ( 480 mm x 650 mm x 206 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	Z-507132.AR-MBS
Bearing Type	Axial cylindrical roller bearings, Double direction
Series	Z-507..AR-MBS
Accuracy class	PN (ABEC-1)
Rows NO.	Two
Weight [lb]	401.2372
C_a Axial Dynamic [lbf]	583471
C_0a Axial static [lbf]	2651849
C_ua Axial Fatigue [lbf]	181396
n_G Speed ratings (oil) [rpm]	525
d φ Inside [inch]	18.8976
D Φ Outside [inch]	25.5905
T Thickness [inch]	8.1102
B Width [inch]	2.1260
D₁ [inch]	20.6693
r₁ (min.) [inch]	0.1181
d₁ [inch]	25.4330
D_c1 [inch]	20.2813
r(min.) [inch]	0.1969
Mounting dimensions
d_a [inch]	20.2756
D_a(max.) [inch]	21.2204
r_a(max.) [inch]	0.1575
r_a1(max.) [inch]	0.0984

The Z-507132.AR-MBS Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
