XU080430 Crossed Roller Slewing Ring Bearing, Without Gear Teeth, Preloaded

🔍

XU080430

Bore Diameter:380 mm

Outside Diameter:480 mm

Width:26 mm

Weight:11.925 kg

Min. Order:1 Piece

The XU080430 Crossed roller slewing bearings are widely used in requiring high levels of rotational accuracy, rigidity, and load-bearing capacity, where installation space is often limited，such as industrial robots (joints, rotary seats), CNC machine tools (rotary tables, turrets), medical equipment (CT scanners, surgical robots), precision measuring instruments, radar turntables, and aerospace applications.

The XU080430 bearing is a Crossed roller slewing ring bearing, without gear teeth, preloaded with an inner diameter of 380 mm , an outer diameter of 480 mm, a width of 26 mm. It typically uses P5, P6, P0 grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears high radial forces and moderate axial and tilting moment loads, Its dynamic radial rated load is approximately 68000 N, its static radial rated load is approximately 168000 N. Its dynamic axial rated load is approximately 96000 N, its static axial rated load is approximately 345000 N. sealed on both sides type, NBR (Nitrile Butadiene Rubber). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: XU 08 0430

Dimensions:

Inside Diameter:

380 mm

Outside Diameter:

480 mm

Thickness:

26 mm

Weight:

11.925 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

68000 N

Static load Capacity, Radial (Cor):

168000 N

Dynamic load Capacity, axial:

96000 N

Static load Capacity, axial:

345000 N

Specifications:

Old Designations:

XU 080430

Structure:

Crossed roller slewing bearings (No gear type)

Number of Rows:

One

Precision Rating:

P5, P6, P0

Load Direction:

high radial forces and moderate axial and tilting moment loads

Bearing Material:

50Mn,42CrMo

Seals Type:

sealed on both sides

Seal Material:

NBR (Nitrile Butadiene Rubber)

Rolling Mlement Material:

GCr15

Operating Temperature:

-30 to 80 °C

System of Measurement:

Metric

Series:

Rolling Element:

Cylindrical Rollers

Gear Options:

without

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

10 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

XU080430 bearings ( 380 mm x 480 mm x 26 mm) have the advantages of The rollers are arranged in a cross pattern, resulting in minimal deformation, low rotational runout, and precise positioning, and are therefore widely used in the Industrial robots, machine tool rotary tables, medical devices, radar antennas and precision rotating equipment.

Part Number	XU080430
Bearing Type	Crossed roller slewing ring bearing, without gear teeth, preloaded
Series	XU
Equivalent	XU 08 0430
Interchangeable	INA XU080430
Load direction	high radial forces and moderate axial and tilting moment loads
Seal type	sealed on both sides
Seal Material	NBR (Nitrile Butadiene Rubber)
Rows NO.	One
m Weight [kg]	11.925
Performance Data
C_a Dynamic Axial	96000 N \| 96.000 KN
C_0a Static Axial	345000 N \| 345.000 KN
C_r Radial Dynamic	68000 N \| 68.000 KN
C_0r Radial Static	168000 N \| 168.000 KN
Operating temperature - T(min) [°C]	-30
Operating temperature - T(max) [°C]	80

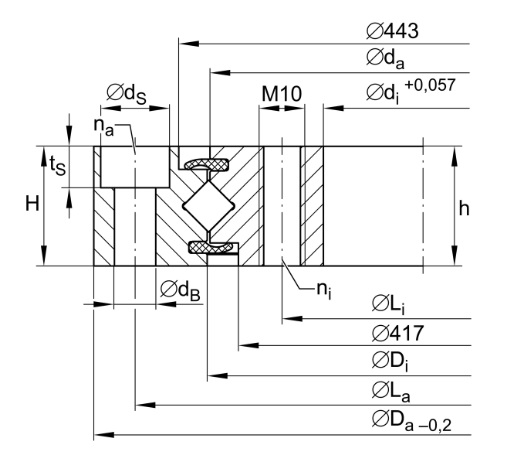

Dimensions
D_a Φ Outside Diameter [mm]	480
d_{i φ Bore Diameter [mm]}	380
D_i Inner diameter outer ring [mm]	430.6
d_a Outside diameter inner ring [mm]	429.4
Height - H [mm]	26
h Height of individual ring [mm]	26
h_i Height of inner ring [mm]	26
Fixing holes
L_a Pitchcircle diameter fixing holes outer ring [mm]	462
n_a Number of fixing holes in outer ring	20
L_i Pitchcircle diameter fixing holes inner ring [mm]	398
n_i Number of fixing holes in inner ring	20
d_B Fixing bore [mm]	9
d_S Counterbore diameter of fixing holes [mm]	15
t_S Counterbore depth of fixing holes [mm]	9
Fr _{zu. Max} Radial load screws	35000 N \| 35.000 KN
Gearing
Gear teeth type	without
Designation Breakdown
VSP min preload [mm]	0.005
VSP max preload [mm]	0.02

The XU080430 Crossed roller slewing bearings mainly consist of an inner ring, an outer ring, cross-arranged cylindrical rollers, spacers, and a sealing device. The rollers are arranged at 90° intervals within the raceway, enabling a single-row structure to withstand multi-directional loads.

The cross-arrangement of the rollers in crossed roller slewing bearings allows them to simultaneously withstand radial loads, axial loads, and overturning moments. They exhibit extremely high rigidity and a precision grade of P5 or higher. Their compact structure and easy installation significantly save installation space.
