VLA 200414N Slewing Bearing Turnable Ring With External Teeth

🔍

VLA200414N

Bore Diameter:304 mm

Outside Diameter:503.3 mm

Width:56 mm

Weight:29.5 kg

Reference FOB Price:US400 ~ 800 / Piece

Min. Order:1 Piece

The VLA200414N bearing is a four point contact ball bearing with an inner diameter of 304 mm , an outer diameter of 503.3 mm, a width of 56 mm. It typically uses P0,P2,P4,P6 grade precision tolerances and features a Nylon/ steel /copper cage, Gcr15 balls, Gcr15 rings. Its dynamic axial rated load is approximately 169, its static axial rated load is approximately 295. It uses 0.1 standard radial clearance, open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: industrial equipment, foresty machine, mining and metallurgy.

Dimensions:

Inside Diameter:

304 mm

Outside Diameter:

503.3 mm

Thickness:

56 mm

Weight:

29.5 KG

Outer Ring Width:

44.5

Inner Ring Width:

47.5

Dynamic load Capacity, axial:

169

Static load Capacity, axial:

295

Reference speed (Grease rpm):

EP2

Specifications:

HS Code:

848210

Structure:

four point contact ball bearing

Number of Rows:

Demensions:

503.3*304*56

Brand:

lymc

Radial Clearance Trade No.:

0.1

Precision Rating:

P0,P2,P4,P6

Bearing Material:

42CrMo/42CrMoQT/50Mn

Cage material:

Nylon/ steel /copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

Gcr15

Roller Material:

Gcr15

Rolling Element:

steel ball

Gear Options:

external gear only

Transaction Information:

Transport Package:

wooden box

Service:

OEM

Shipping Ways:

sea, air

Country of Origin:

China

Quality Control:

QC report, ISO

Stock:

100 Piece

Production Capacity:

1000

Port:

shanghai, qingdao, ningbo

Payment term:

T/T, L/C

Delivery time:

30 days

Detailed description

VLA200414N slewing bearing turnable ring with external teeth information:

The outer ring diameter:503.3mm

The inner ring diameter:304mm

The total height diameter:56mm

Di:415.5mm

da:412.5mm

La:455mm

Li:332mm

do:495mm

Outer ring hole:10-M12

Inner ring hole:12-φ18

Module:5

Number of teeth:99

Tooth force:

Fz norm:15.9kN

Fz max:23.6kN

Basic load rating:

axial dyn. Ca:169kN

axial stat C0a:295kN

radial dyn Cr:111kN

radial stat C0r:110kN

Material:50Mn/42CrMo

Package:wooden box

Delivery:30 days

If you interesting the type VLA200414N external teeth slewing bearing, please contact me freely.

Share this product to:

Let more people see your product

How can you buy VLA 200414N Slewing Bearing Turnable Ring With External Teeth on the Internet?
High quality VLA200414N ( 29.5 kg Mass, ID: 304 mm OD: 503.3 mm WD: 56 mm , 1 Rows , 0.1 Radial Clearance , P0,P2,P4,P6 Accuracy Class , 42CrMo/42CrMoQT/50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. VLA200414N. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- Wholesale China standard VLI 200744N slewing bearing swing circle factory manufacturer
- Wholesale China standard VLI 200744N slewing bearing swing circle factory manufacturer The outer
- Ship unloader custom RKS.061.20.0944 slewing ball bearing
- Ship unloader custom RKS.061.20.0944 slewing ball bearing Material:50mn/42crmo/custom Structure:single row four point contact
- Custom China SD.1155.25.00.B slewing ball bearing turntable rings
- custom china SD.1155.25.00.B slewing ball bearing turntable rings Material:50mn/42crmo/custom Structure:single row four point
- Light weight VLU200414 single row slewing ball bearing circle supply
- Light weight VLU200414 single row slewing ball bearing circle supply Material:42CrMo/50Mn/42CrMo4 Structure:four point contact
- Standard China MTE-540 rotary bearing slew ring design
- Standard China MTE-540 rotary bearing slew ring design technical datas: Material:42CrMo/50Mn/42CrMo4 Structure:four point contact
- Industrial Equipment 90-20 0541/0-07022 oem slew ball bearing ring in China
- Industrial Equipment 90-20 0541/0-07022 oem slew ball bearing ring in China Model no.:90-20

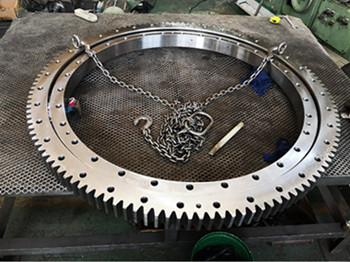

- Hot sale VSA 201094-N slewing ball bearing swing external gear ring size replacement
