VCM-7 Rod End (Shaft Dia: 0.4375 Inch)

🔍

VCM-7

Bore Diameter:0.4375 inch

Min. Order:1 Piece

The VCM-7 bearing is a Rod Ends with an inner diameter of 0.4375 inch , It typically uses Standard grade precision tolerances and its static radial rated load is approximately 4464 (Lbs). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Steering and shifting mechanisms, general purpose linkages, packaging equipment, and light-duty mechanical assemblies.

Dimensions:

Inside Diameter:

0.4375 inch

Static load Capacity, Radial (Cor):

4464 (Lbs)

Specifications:

HS Code:

8482109000

Brand:

Neutral Product

Precision Rating:

Standard

Bearing Material:

Steel

Bore Type:

Cylindrical

System of Measurement:

Inch

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

1000 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

VCM-7 rod end, male threaded, right hand, low carbon steel body, alloy steel ball, steel backed, PTFE composite bushing, long service life, smooth articulation.

Bore Diameter: 0.4375 Inch (11.113mm)

Thread Size: 7/16-20 UNF-3A

Thread Direction: Right Hand

Rod End Type: Male

HS Code: 8482109000

Rod End
Part Number	VCM-7
Thread Type	Right Hand
Thread Configuration	Male
Size	Inch	mm
B - Ball Bore	0.4375	11.113
W - Ball Width	0.562	14.27
H - Head Width	0.406	10.31
A - Base to Center	2.125	53.98
D - Head Diameter	1.125	28.58
Ball Diameter	0.781	19.84
C - Thread Length	1.375	34.93
Thread UNF-3A	7/16-20
a° Misalignment Angle	17
Ultimate Radial Static Load Capacity (Lbs)	4,464
Approximate Brg. Weight (Grams)	68

Body - Low carbon steel - protective coated for corrosion resistance.

Ball - Alloy steel - heat treated - hard chrome plated.

Bushing - Steel backed, PTFE composite.

Studded configuration available upon request. Specify by adding suffix "S". Ex.: VCM-8S.

Applications:

Automotive: Steering and shifting mechanisms

Industrial & Automation: General purpose linkages, packaging equipment, and light-duty mechanical assemblies.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.

Share this product to:

Let more people see your product

How can you buy VCM-7 Rod End (Shaft Dia: 0.4375 Inch) on the Internet?
High quality VCM-7 ( ID: 0.4375 inch , Standard Accuracy Class , Steel Material , 4464 (Lbs) Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. VCM-7. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- CS19-1 Ball Joint Rod End
- CS19-1 Rod End Bearing CS19-1 Ball Joint Rod End
- SA25C Rod End (Size:25x64x126mm)
- SA25C Male Threaded Rod End Size: 25x64x126mm Bore Diameter Bearing (d): 25mm Outer Eye Diameter
- GF45-DO Rod End (Size:45x110x132mm)
- GF45-DO Hydraulic Rod End Size: 45x110x132mm Bore Diameter Bearing (d): 45mm Outer Eye Diameter (d2):
- GF90-DO Rod End (Size:90x226x263mm)
- GF90-DO Hydraulic Rod End Size: 90x226x263mm Bore Diameter Bearing (d): 90mm Outer Eye Diameter
- 313823A Four Row Cylindrical Roller Bearing (Size: 260x370x220mm)
- 313823A Four Row Cylindrical Roller Bearing Size: 260x370x220mm Inside Diameter (d): 260mm Outside Diameter (D):

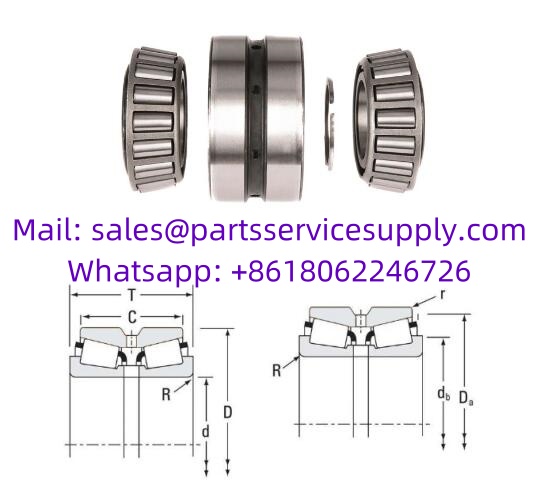

- HM231148/HM231111CD Tapered Roller Bearing (Size: 5.875x9.3125x5.1874 Inch)
- HM231148/HM231111CD Tapered Roller Bearing, TDO Type, Double Row, Inch Size. Size (Inner Dia
- NF2213EM Cylindrical Roller Bearing 65x120x31mm
- NF2213EM Cylindrical Roller Bearing Bearing Model No. : NF2213EM Type: Cylindrical Roller Bearing Size: 65x120x31mm

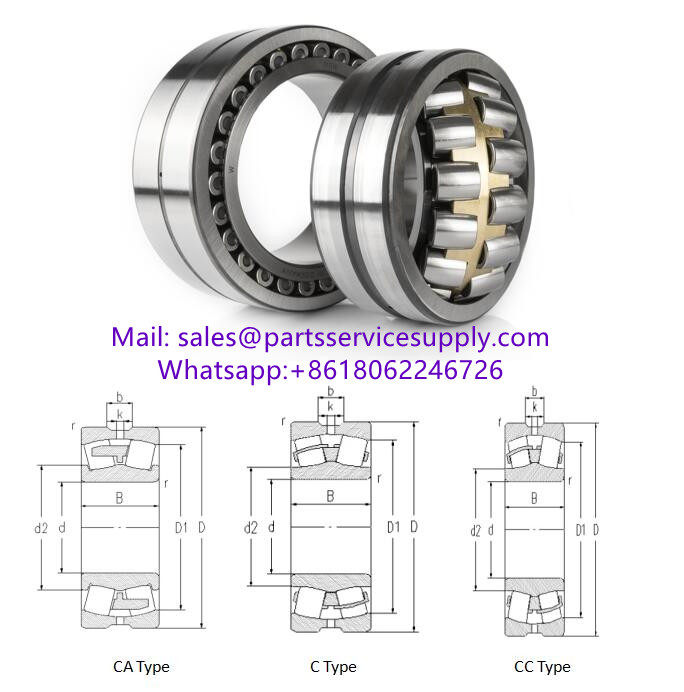

- 24172CAK30/W33 (Size:360x600x243mm) Spherical Roller Bearing for Mining Equipment
