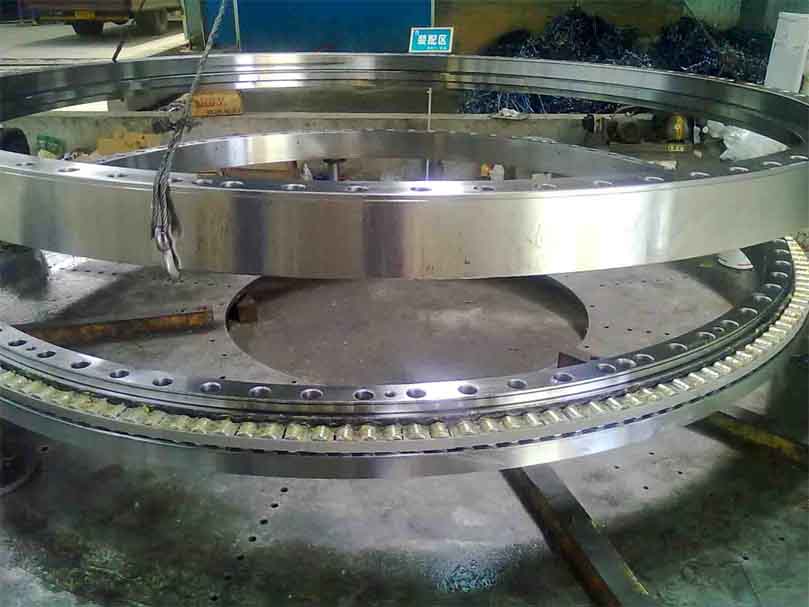

Three Row Cylindrical Roller Bearing 131.50.3550

🔍

131.50.3550

Bore Diameter:3268 mm

Outside Diameter:3832 mm

Width:270 mm

The 131.50.3550 bearing is a cylindrical roller bearings with an inner diameter of 3268 mm , an outer diameter of 3832 mm, a width of 270 mm. It typically uses P0-P6 grade precision tolerances and NBR type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

3268 mm

Outside Diameter:

3832 mm

Thickness:

270 mm

Specifications:

Structure:

3832*3268*270

Brand:

KXB

Precision Rating:

P0-P6

Bearing Material:

50Mn/42CrMo/other

Seals Type:

NBR

Transaction Information:

Detailed description

packing Wooden packing or pallet packing or according to customer's requirement
.material 50Mn/42CrMo/other
.certificates ISO9001:2008
. service concept quality comes from excellence, from the profession, from the details
.Roller materials
GCr15SiMo /other
.cage materials Monolithic cage:20 steel or aluminum alloy ZL102 casting
Isolation block cage:Polyamide 1010 resin, ZL102 casting aluminum alloy more or QA110-3-1.5 aluminum bronze
Cross-cylindrical roller wheel bearings
Among the cross roller bearings, cylindrical roller were arranged perpendicular to each other through the isolation block on the900 inthe V-shaped grooves, so the cross-roller bearings can bear radial load, axial load and torque load, and other direction of the load.
7. Ship unloaders

Optional Information
- Payment : T/T
- Delivery : 30-45 DAYS
- Origin : China
- Minimum Order : 1 pcs
- Packaging : customer demand
- Samples : Not Avaliable
- Remarks : crossed cylindrical roller bearing

130.25.500	131.25.500	133.25.500	634	366
	132.25.500	134.25.500
130.25.560	131.25.560	133.25.560	694	426
	132.25.560	134.25.560
130.25.630	131.25.630	133.25.630	764	496
	132.25.630	134.25.630
130.25.710	131.25.710	133.25.710	844	576
	132.25.710	134.25.710
130.32.800	131.32.800	133.32.800	964	636
	132.32.800	134.32.800
130.32.900	131.32.900	133.32.900	1064	736
	132.32.900	134.32.900
130.32.1000	131.32.1000	133.32.1000	1164	836
	132.32.1000	134.32.1000
130.32.1120	131.32.1120	133.32.1120	1284	956
	132.32.1120	134.32.1120
130.40.1250	131.40.1250	133.40.1250	1445	1055
	132.40.1250	134.40.1250
130.40.1400	131.40.1400	133.40.1400	1595	1205
	132.40.1400	134.40.1400
130.40.1600	131.40.1600	133.40.1600	1795	1405
	132.40.1600	134.40.1600
130.40.1800	131.40.1800	133.40.1800	1995	1605
	132.40.1800	134.40.1800
130.45.2000	131.45.2000	133.45.2000	2221	1779
	132.45.2000	134.45.2000
130.45.2240	131.45.2240	133.45.2240	2461	2019
	132.45.2240	134.45.2240
130.45.2500	131.45.2500	133.45.2500	2721	2279
	132.45.2500	134.45.2500
130.45.2800	131.45.2800	133.45.2800	3021	2579
	132.45.2800	134.45.2800
130.50.3150	131.50.3150	133.50.3150	3432	2868
	132.50.3150	134.50.3150
130.50.3550	131.50.3550	133.50.3550	3832	3268
	132.50.3550	134.50.3550
130.50.4000	131.50.4000	133.50.4000	4282	3718
	132.50.4000	134.50.4000
