Tandem Roller Bearing T4ar1949e 19x49x88.5mm

🔍

t4ar1949e

Bore Diameter:19 mm

Outside Diameter:49 mm

Width:88.5 mm

Weight:2 kg

Reference FOB Price:US100 ~ 1000 / Piece

Min. Order:2 Piece

The t4ar1949e bearing is a Extruder Tandem roller Bearing with an inner diameter of 19 mm , an outer diameter of 49 mm, a width of 88.5 mm. It typically uses P6 P5 grade precision tolerances and CHROME STEEL rings. Its dynamic radial rated load is approximately 265KN, its static radial rated load is approximately 669kn. It uses C1 C2 C3 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: Thrust cylindrical roller bearing

Application: single and twin screw extrudes in the rubber and plastics industry.

Dimensions:

Inside Diameter:

19 mm

Outside Diameter:

49 mm

Thickness:

88.5 mm

Weight:

2 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

265KN

Static load Capacity, Radial (Cor):

669kn

Specifications:

Old Designations:

T4AR 1949E

HS Code:

8482500090

Structure:

Tandem roller bearing

Number of Rows:

Demensions:

19X49X88.5mm

Brand:

JHB or OEM

Radial Clearance Trade No.:

C1 C2 C3

Precision Rating:

P6 P5

Bearing Material:

GCr15SiMn

Cage Type:

Brass cage

Roller Material:

CHROME STEEL

Transaction Information:

Transport Package:

WOODEN CASE/CARTON

Service:

Offer assembly drawing

Shipping Ways:

by sea or by air

Country of Origin:

CHINA LUOYANG

Quality Control:

ISO9001 and Bearing quality standard

Production Capacity:

1000 PCS/Month

Port:

SHANGHAI OR QINGDAO

Payment term:

T/T,WU, LC

Delivery time:

IN STOCK

Detailed description

pipe laying and drawing machine use Tandem roller bearing T4AR1949E 19x49x88.5mm

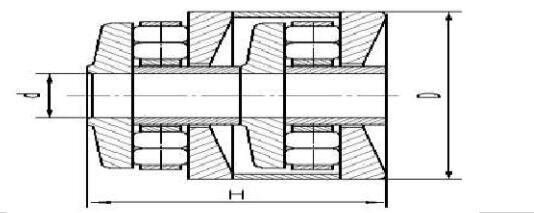

Tandem bearings T4AR1949E consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearingT4AR1949E with size 19x49x88.5mm, the inner diameter:19mm, the outer diameter:49mm, the total height:88.5mm

Tandem bearing code

Basic size unit(mm)

Basic load rating

Unit (KN)

material

Inner dia

Outer dia

Height

Cor

T4AR1949E

88.5

265

669

Steel chrome

Share this product to:

Let more people see your product

How can you buy Tandem Roller Bearing T4ar1949e 19x49x88.5mm on the Internet?
High quality t4ar1949e ( 2 kg Mass, ID: 19 mm OD: 49 mm WD: 88.5 mm , 4 Rows , C1 C2 C3 Radial Clearance , P6 P5 Accuracy Class , GCr15SiMn Material , 265KN Radial dynamic , 669kn Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. t4ar1949e. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
