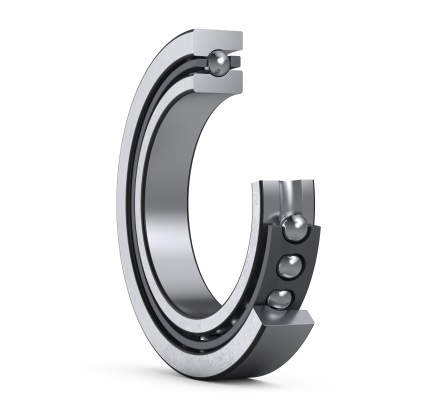

Polyamide Cage TAC80-3T85SUELPN5D Angular Contact Super Precision Bearings For Ball Screw Support

🔍

TAC80-3T85SUELPN5D

Bore Diameter:80 mm

Outside Diameter:215 mm

Width:47 mm

Weight:8.66 kg

Min. Order:1 Piece

The TAC80-3T85SUELPN5D Ball screw support bearings are widely used in the feed drive systems of CNC machine tools, specifically including: machining centers (X/Y/Z axis screw support), CNC lathes (Z-axis), EDM machines, precision grinding machines, industrial robots (linear modules), and semiconductor equipment (wafer positioning platforms).

The TAC80-3T85SUELPN5D bearing is a Angular Contact Super Precision Thrust Ball Bearings, TAC 03 Series for Ball Screw Support (High-Load Drive) with an inner diameter of 80 mm , an outer diameter of 215 mm, a width of 47 mm. It typically uses PN5D = Standard accuracy (ISO Class 5) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

80 mm

Outside Diameter:

215 mm

Thickness:

47 mm

Weight:

8.66 KG

Reference speed (Grease rpm):

1888

Limiting speed (Oil rpm):

2357

Specifications:

Structure:

Ball Screw Support Bearings

Number of Rows:

One

Precision Rating:

PN5D = Standard accuracy (ISO Class 5)

Bearing Material:

GCr15SiMn

Cage Type:

T85 = Polyamide cage

Seals Type:

Open

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical

System of Measurement:

Metric

Series:

TAC 03 Series (TAC..-3T85SUELPN5D)

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

TAC80-3T85SUELPN5D bearings ( 80 mm x 215 mm x 47 mm) have the advantages of High axial stiffness and load-bearing capacity, 60° contact angle design, pre-installed and pre-loaded for easy installation, optional sealing for maintenance-free operation, and are therefore widely used in the Machine tool ball screws, machining centers, automated equipment, robots, precision measuring devices.

Part Number	TAC80-3T85SUELPN5D
Bearing Type	Angular Contact Super Precision Thrust Ball Bearings, TAC 03 Series for Ball Screw Support (High-Load Drive)
Internal design	D = Contact angle 55 °
Contact angle - α	55 °
Type	TAC
Dimension series	03 = 03 Series
Preload	EL = Extra light preload
Arrangement row	One
Arrangement	SU = Universal (One-row)
SU Bearing Mass - m [lb]	19.0918
DB/DF Arrangement H preload [lbf]	270
DB/DF Arrangement H Axial Rigidity	837 N/µm
DB/DF Arrangement H Starting Torque	0.15 N･m
DB/DF Arrangement H Measured Axial Clearance	-6 µm
Speed ratings (grease) - n_B	1888 min^–1
Speed ratings (oil) - n_G	2357 min^–1
Recommended Grease Quantities - CC	156 g/brg
Dimension
d φ Inside [inch]	3.1496
D Φ Outside [inch]	8.4646
B Width [inch]	1.8504
r min Chamfer [inch]	0.1181
r₁ min Chamfer [inch]	0.0433
d₁ Shoulder [inch]	4.8819
d₂ Shoulder [inch]	6.0984
D₁ Shoulder/Recess [inch]	6.3149
D₂ Shoulder/Recess [inch]	7.6575
Dynamic Axial Capacity
C_a 1 row [lbf]	94348
C_a 2 row [lbf]	153947
C_a 3 row [lbf]	204506
C_a 4 row [lbf]	249468
C_a 5 row [lbf]	292210
Static Axial Capacity
C_0a 1 row [lbf]	114606
C_0a 2 row [lbf]	229187
C_0a 3 row [lbf]	343858
C_0a 4 row [lbf]	458526
C_0a 5 row [lbf]	573134
Other Arrangement	1 rows: DB(<>): TAC80-3T85DBELPN5D DF(><): TAC80-3T85DFELPN5D 2 rows: DT(<<): TAC80-3T85DTELPN5D DFD(><<): TAC80-3T85DFDELPN5D DFF(>><<): TAC80-3T85DFFELPN5D DBD(<<>): TAC80-3T85DBDELPN5D DBB(<<>>): TAC80-3T85DBBELPN5D 3 rows: DFT(><<<): TAC80-3T85DFTELPN5D DFFD(>><<): TAC80-3T85DFFDELPN5D DFFF(>>><<<): TAC80-3T85DFFFELPN5D DBT(<<<>): TAC80-3T85DBTELPN5D DBBD(<<<>>): TAC80-3T85DBBDELPN5D DBBB(<<<>>>): TAC80-3T85DBBBELPN5D 4 rows: DFTD(><<<<): TAC80-3T85DFTDELPN5D DFFT(>><<<<): TAC80-3T85DFFTELPN5D DBTD(<<<<>): TAC80-3T85DBTDELPN5D DBBT(<<<<>>): TAC80-3T85DBBTELPN5D 5 rows: DFTT(><<<<<): TAC80-3T85DFTTELPN5D DBTT(<<<<<>)TAC80-3T85DBTTELPN5D

The TAC80-3T85SUELPN5D Ball screw support bearings are typically composed of high-precision angular contact ball bearings paired back-to-back (DB) or in series (DT) configurations. They feature a small contact angle (15° or 20°) and high-rigidity cages (phenolic resin or brass) on both inner and outer rings, achieving a precision grade of P4 or higher. Some models integrate seals and lubrication holes, forming a preload unit.

Ball screw support bearings offer extremely high axial rigidity and load-bearing capacity, accurately withstanding bidirectional axial loads in screw drives. The back-to-back configuration provides anti-overturning moment capability, ensuring positioning accuracy. The preload design eliminates axial backlash, achieving backlash-free, low-friction operation with low heat generation, making them suitable for high-speed feed. They are factory-installed and ready to use, simplifying installation and adjustment.
