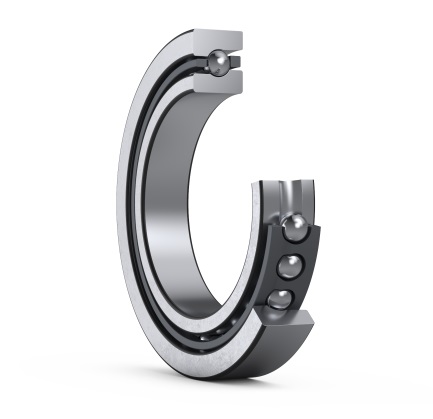

Polyamide Cage TAC35-3T85SUMPN5D Angular Contact Super Precision Bearings For Ball Screw Support

🔍

TAC35-3T85SUMPN5D

Bore Diameter:35 mm

Outside Diameter:90 mm

Width:23 mm

Weight:0.712 kg

Min. Order:1 Piece

The TAC35-3T85SUMPN5D Ball screw support bearings are widely used in the feed drive systems of CNC machine tools, specifically including: machining centers (X/Y/Z axis screw support), CNC lathes (Z-axis), EDM machines, precision grinding machines, industrial robots (linear modules), and semiconductor equipment (wafer positioning platforms).

The TAC35-3T85SUMPN5D bearing is a Angular Contact Super Precision Thrust Ball Bearings, TAC 03 Series for Ball Screw Support (High-Load Drive) with an inner diameter of 35 mm , an outer diameter of 90 mm, a width of 23 mm. It typically uses PN5D = Standard accuracy (ISO Class 5) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

35 mm

Outside Diameter:

90 mm

Thickness:

23 mm

Weight:

0.712 KG

Reference speed (Grease rpm):

4585

Limiting speed (Oil rpm):

5666

Specifications:

Structure:

Ball Screw Support Bearings

Number of Rows:

One

Precision Rating:

PN5D = Standard accuracy (ISO Class 5)

Bearing Material:

GCr15SiMn

Cage Type:

T85 = Polyamide cage

Seals Type:

Open

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical

System of Measurement:

Metric

Series:

TAC 03 Series (TAC..-3T85SUMPN5D)

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

TAC35-3T85SUMPN5D bearings ( 35 mm x 90 mm x 23 mm) have the advantages of High axial stiffness and load-bearing capacity, 60° contact angle design, pre-installed and pre-loaded for easy installation, optional sealing for maintenance-free operation, and are therefore widely used in the Machine tool ball screws, machining centers, automated equipment, robots, precision measuring devices.

Part Number	TAC35-3T85SUMPN5D
Bearing Type	Angular Contact Super Precision Thrust Ball Bearings, TAC 03 Series for Ball Screw Support (High-Load Drive)
Internal design	D = Contact angle 55 °
Contact angle - α	55 °
Type	TAC
Dimension series	03 = 03 Series
Preload	M = Medium preload
Arrangement row	One
Arrangement	SU = Universal (One-row)
SU Bearing Mass - m [lb]	1.5697
DB/DF Arrangement H preload [lbf]	552
DB/DF Arrangement H Axial Rigidity	760 N/µm
DB/DF Arrangement H Starting Torque	0.26 N･m
DB/DF Arrangement H Measured Axial Clearance	-18 µm
Speed ratings (grease) - n_B	4585 min^–1
Speed ratings (oil) - n_G	5666 min^–1
Recommended Grease Quantities - CC	14 g/brg
Dimension
d φ Inside [inch]	1.3780
D Φ Outside [inch]	3.5433
B Width [inch]	0.9055
r min Chamfer [inch]	0.0591
r₁ min Chamfer [inch]	0.0394
d₁ Shoulder [inch]	1.9842
d₂ Shoulder [inch]	2.5276
D₁ Shoulder/Recess [inch]	2.6417
D₂ Shoulder/Recess [inch]	3.2165
Dynamic Axial Capacity
C_a 1 row [lbf]	25304
C_a 2 row [lbf]	41283
C_a 3 row [lbf]	54782
C_a 4 row [lbf]	67109
C_a 5 row [lbf]	78609
Static Axial Capacity
C_0a 1 row [lbf]	26473
C_0a 2 row [lbf]	52802
C_0a 3 row [lbf]	79753
C_0a 4 row [lbf]	105625
C_0a 5 row [lbf]	132581
Other Arrangement	1 rows: DB(<>): TAC35-3T85DBMPN5D DF(><): TAC35-3T85DFMPN5D 2 rows: DT(<<): TAC35-3T85DTMPN5D DFD(><<): TAC35-3T85DFDMPN5D DFF(>><<): TAC35-3T85DFFMPN5D DBD(<<>): TAC35-3T85DBDMPN5D DBB(<<>>): TAC35-3T85DBBMPN5D 3 rows: DFT(><<<): TAC35-3T85DFTMPN5D DFFD(>><<): TAC35-3T85DFFDMPN5D DFFF(>>><<<): TAC35-3T85DFFFMPN5D DBT(<<<>): TAC35-3T85DBTMPN5D DBBD(<<<>>): TAC35-3T85DBBDMPN5D DBBB(<<<>>>): TAC35-3T85DBBBMPN5D 4 rows: DFTD(><<<<): TAC35-3T85DFTDMPN5D DFFT(>><<<<): TAC35-3T85DFFTMPN5D DBTD(<<<<>): TAC35-3T85DBTDMPN5D DBBT(<<<<>>): TAC35-3T85DBBTMPN5D 5 rows: DFTT(><<<<<): TAC35-3T85DFTTMPN5D DBTT(<<<<<>)TAC35-3T85DBTTMPN5D

The TAC35-3T85SUMPN5D Ball screw support bearings are typically composed of high-precision angular contact ball bearings paired back-to-back (DB) or in series (DT) configurations. They feature a small contact angle (15° or 20°) and high-rigidity cages (phenolic resin or brass) on both inner and outer rings, achieving a precision grade of P4 or higher. Some models integrate seals and lubrication holes, forming a preload unit.

Ball screw support bearings offer extremely high axial rigidity and load-bearing capacity, accurately withstanding bidirectional axial loads in screw drives. The back-to-back configuration provides anti-overturning moment capability, ensuring positioning accuracy. The preload design eliminates axial backlash, achieving backlash-free, low-friction operation with low heat generation, making them suitable for high-speed feed. They are factory-installed and ready to use, simplifying installation and adjustment.
