K81128-TV Axial Cylindrical Roller And Cage Assemblies, Single Row, Plastic Cage

🔍

K81128-TV

Bore Diameter:140 mm

Outside Diameter:180 mm

Width:12 mm

Weight:0.4 kg

Min. Order:1 Piece

The K81128-TV Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The K81128-TV bearing is a Axial cylindrical roller and cage assemblies, Single row with an inner diameter of 140 mm , an outer diameter of 180 mm, a width of 12 mm. GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 259462 N, its static axial rated load is approximately 959407 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

140 mm

Outside Diameter:

180 mm

Thickness:

12 mm

Weight:

0.4 KG

Dynamic load Capacity, axial:

259462 N

Static load Capacity, axial:

959407 N

Fatigue Load Limit, Axial:

82771 N

Reference speed (Grease rpm):

702

Limiting speed (Oil rpm):

1783

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

One

Cage Type:

TV = Plastic cage made from glass fibre reinforced polyamide 66

Rolling Mlement Material:

GCr15SiMn

Operating Temperature:

-20 to 120 °C

System of Measurement:

Metric

Series:

K811 series (K811..-TV)

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

K81128-TV bearings ( 140 mm x 180 mm x 12 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	K81128-TV
Bearing Type	Axial cylindrical roller and cage assemblies, Single row
Series	K811 series (K811..-TV)
Cage	TV = Plastic cage made from glass fibre reinforced polyamide 66
Rows NO.	One
Weight [lb]	0.8818
C_a Axial Dynamic [lbf]	58327
C_0a Axial static [lbf]	215674
C_ua Axial Fatigue [lbf]	18606
n_B Speed ratings (grease) [rpm]	702
n_G Speed ratings (oil) [rpm]	1783
Dw [inch]	0.4724
D_c [inch]	7.0866
D_c1 [inch]	5.5118
E_b Raceway [inch]	5.7087
E_a Raceway [inch]	6.8898

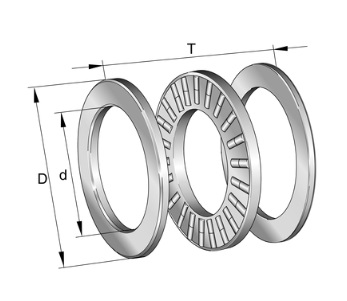

The K81128-TV Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
