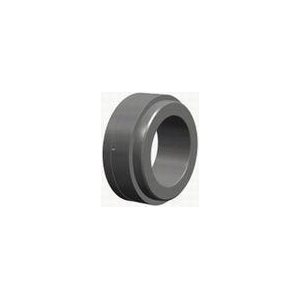

GAC100T Bearing 10015032mm

🔍

GAC100T

Bore Diameter:100 mm

Outside Diameter:150 mm

Width:32 mm

Weight:2.340 kg

The GAC100T bearing is a Spherical plain bearings with an inner diameter of 100 mm , an outer diameter of 150 mm, a width of 32 mm. It typically uses P6 P5 P4 P2 P0 grade precision tolerances and together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

100 mm

Outside Diameter:

150 mm

Thickness:

32 mm

Weight:

2.340 KG

Specifications:

Structure:

Spherial Plain Bearing

Precision Rating:

P6 P5 P4 P2 P0

Bearing Material:

Gcr15.

Transaction Information:

Payment term:

T/T L/C

Delivery time:

negotiable

Detailed description

No.:GAC100T

Type: Angular Contact Spherial Plain Bearing

Lubrication: Oil or Grease

Dimensions:100mm x150mm x32mm

ID (inner diameter)/Bore:100mm

OD(outer diameter):150mm

Width/Height/thickness:32mm

Product detail

Spherical plain bearing is a special structure of the sliding bearing. Its structure is simpler than the Rolling by an inner and outer one within the sphere of spherical, can withstand a larger load, according to their different types and structures that can withstand the radial load, shaft to load or radial, axial joint load at the same time.

Design and application features of spherical plain bearing GAC...S series:

Bearing ring of carbon chromium steel,hardened and phosphated,sliding surface treated with MoS2. It has characteristics of wear-resistance,anti-corrosion and self-aligning,suitable for radial loads and single direction axial loads mechanims.

characteristics :

Maintenance required

Sliding contact surfaces: Steel/Steel.

Outer and inner ring is made of carbon chromium steel , hardened and ground, surface is with phosphating

Sliding contact surfaces with MoS2 coating

Share this product to:

Let more people see your product

How can you buy GAC100T Bearing 100*150*32mm on the Internet?
High quality GAC100T ( 2.340 kg Mass, ID: 100 mm OD: 150 mm WD: 32 mm , P6 P5 P4 P2 P0 Accuracy Class , Gcr15. Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. GAC100T. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
