FCD114150530 Bore 570 Mm, Four-row Cylindrical Roller Bearing For Rolling Mill, Machined Brass Solid Cages
The FCD114150530 Four-row cylindrical roller bearings is suitable for heavy machinery applications that bear huge radial loads. Classic applications include: support rolls of rolling mills, large gearboxes, heavy machine tool spindles, wind turbine spindles, ship propulsion shafts, and rotor supports for high-power compressors.
The FCD114150530 bearing is a Four-row cylindrical roller bearing for cold rolling mill, hot rolling mill, billet mill with an inner diameter of 570 mm , an outer diameter of 750 mm, a width of 530 mm. It typically uses P0, P2, P4 grade precision tolerances and Bearing steel rings, Bearing steel rolling mlement. It primarily bears radial, Its dynamic radial rated load is approximately 6750000 N, its static radial rated load is approximately 25200000 N. It uses C3 standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
FCD114150530 bearings ( 570 mm x 750 mm x 530 mm) have the advantages of Extremely high radial load capacity, high rigidity, separable design, and are therefore widely used in the metallurgical rolling mills, large gearboxes, and heavy-duty extrusion presses.
| Part Number | FCD114150530 |
| Old Code | 6727/570 |
| Interchangeable | China FCD114150530 |
| Cage | machined brass solid cages |
| Radial internal clearance | C3 |
| Seal | Open |
| Bearing Type | Four-row cylindrical roller bearing for cold rolling mill, hot rolling mill, billet mill |
| Design type | FCD |
| Bearing Weight [lb] | 1461.650 |
| d φ Inside [inch] | 22.441 |
| D Φ Outside [inch] | 29.528 |
| B Width [inch] | 20.866 |
| F Raceway diameter inner ring [inch] | 24.488 |
| Cr Radial Dynamic [lbf] | 1517400 |
| C0r Radial Static [lbf] | 5664960 |
| nB Speed ratings (grease) [rpm] | 390 |
| nG Speed ratings (oil) [rpm] | 480 |

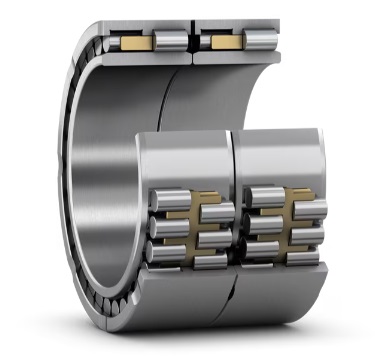

The FCD114150530 Four-row cylindrical roller bearings mainly consist of an inner ring, an outer ring, four rows of cylindrical rollers, a cage, and a spacer. Common structures use a configuration of double outer rings (each with double raceways) and a single inner ring (with four raceways), or an interchangeable combination of inner and outer rings. Axial positioning and load distribution are achieved through the spacer.
The advantages of four-row cylindrical roller bearings are their extremely high radial load capacity, high rigidity, and the line contact between the rollers and raceways, resulting in a low coefficient of friction and allowing for high-speed operation under heavy loads. They can also be used as floating end bearings, capable of withstanding axial displacement caused by thermal expansion, and are easy to install and maintain.
