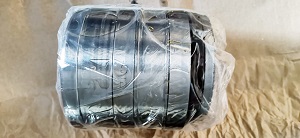

Cylindrical Roller Thrust Bearing T-3092-6A For Extruder Gearbox

🔍

T-3092-6A

Bore Diameter:30 mm

Outside Diameter:92 mm

Width:294 mm

Weight:3.8 kg

Reference FOB Price:US100 ~ 1000 / Piece

Min. Order:10 Piece

T-3092-6A bearing highlights:The Axial Forces Are Supported By A six-Stage Tandem Bearing T6AR Combined With An Axial Cylindrical Roller Bearing Of Series 894

The T-3092-6A bearing is a Extruder Tandem roller Bearing with an inner diameter of 30 mm , an outer diameter of 92 mm, a width of 294 mm. It typically uses P5 P4 Grade grade precision tolerances and features a Brass or Nylon cage, steel rings. It primarily bears Radial, Its dynamic radial rated load is approximately 710, its static radial rated load is approximately 2000. It uses C0 C3 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: tandem roller bearing

Application: extrusion equipment gearbox roller bearings

Dimensions:

Inside Diameter:

30 mm

Outside Diameter:

92 mm

Thickness:

294 mm

Weight:

3.8 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

710

Static load Capacity, Radial (Cor):

2000

Specifications:

Old Designations:

t-3092-6a

HS Code:

8482500090

Structure:

Thrust cylindrical roller bearing

Number of Rows:

6 rows

Demensions:

30X92X294mm

Radial Clearance Trade No.:

C0 C3

Precision Rating:

P5 P4 Grade

Load Direction:

Radial

Bearing Material:

Steel

Cage Type:

windows

Cage material:

Brass or Nylon

Roller Material:

steel

Bore Type:

cylindrical bore

Operating Temperature Range:

80-120 degree

System of Measurement:

GBT3077

Series:

Thrust cylindrical roller bearing

Rolling Element:

roller

Transaction Information:

Transport Package:

carton

Service:

Offer technology service

Shipping Ways:

By Sea or By air

Country of Origin:

China Luoyang

Stock:

100 Piece

Production Capacity:

1000PCS/ 6 months

Port:

shanghai or qingdao

Payment term:

T/T,L/C

Delivery time:

in stock

Detailed description

Cylindrical Roller Thrust Bearing T-3092-6 for extruder gearbox

Bearing factory Number: T-3092-6A
Item code:T-3092-6A
Structure:Basic Type Tandem Thrust Cylindrical Roller Bearing
Original place:China LuoYang
Lubrication:Oil lubrication
Boundary metric size: 30*92*294mm
Outer diameter D:92mm
Inner diameter d:30mm
The total height:294mm
Bore: Cylindrical bore
Rows No.:6 rows
T-3092-6A Full shape inch size:
Dimension inch size:1.18”*3.62”*11.57”
Inner bore:1.18”
Outer bore:3.62”
Width:11.57”
The delivery time: 7 days
Manufacturer part code:t-3092-6A
Basic dynamic load ratiing Cr:720KN
Basic static load rating Cor2100KN

Share this product to:

Let more people see your product

How can you buy Cylindrical Roller Thrust Bearing T-3092-6A For Extruder Gearbox on the Internet?
High quality T-3092-6A ( 3.8 kg Mass, ID: 30 mm OD: 92 mm WD: 294 mm , Thrust cylindrical roller bearing Series , 6 rows Rows , C0 C3 Radial Clearance , P5 P4 Grade Accuracy Class , Steel Material , 710 Radial dynamic , 2000 Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. T-3092-6A. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
