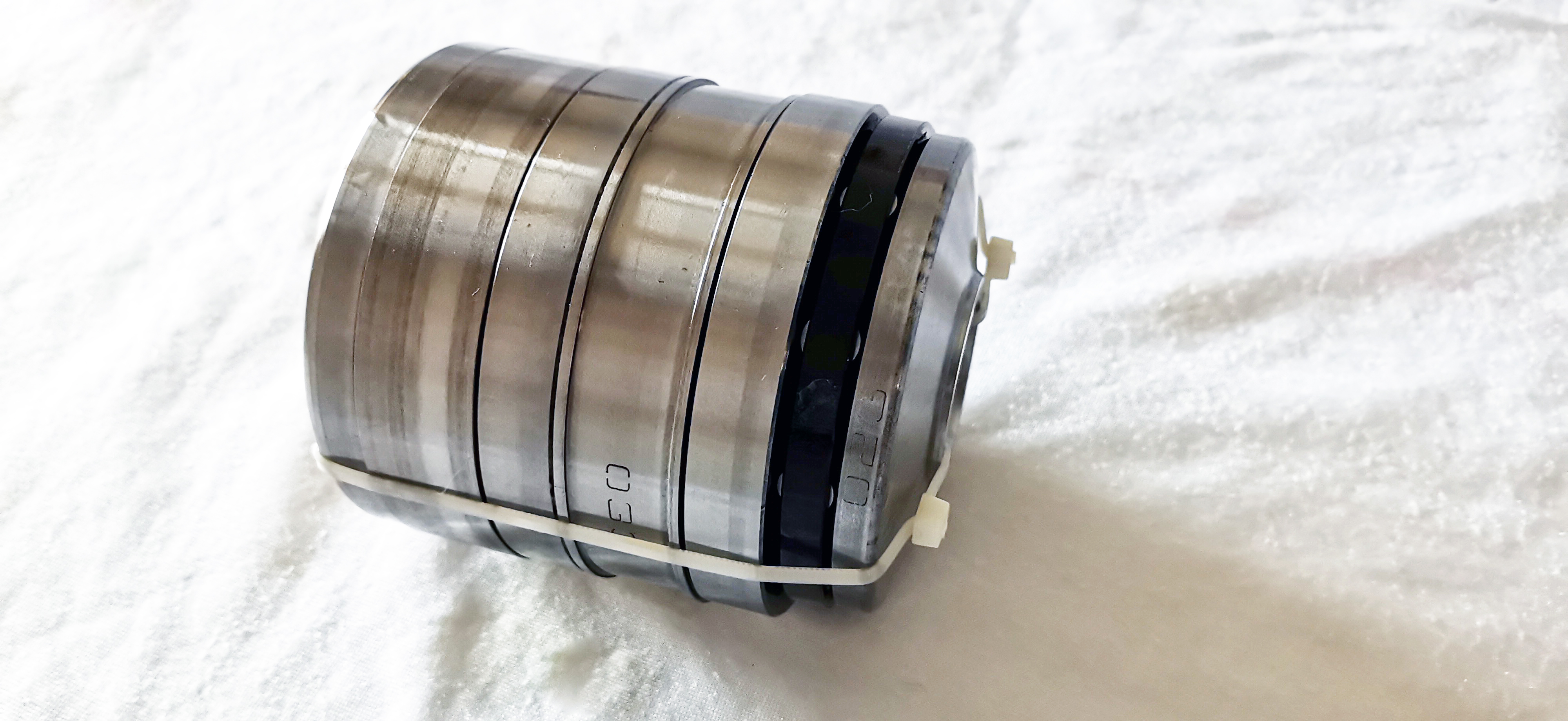

Cylindrical Roller Thrust Bearing T-2872-6A Factory In Stock

🔍

T-2872-6A

Bore Diameter:29 mm

Outside Diameter:75 mm

Width:165 mm

Weight:3.5 kg

Reference FOB Price:US100 ~ 1000 / Piece

Min. Order:10 Piece

T-2872-6A：The Axial Forces Are Supported By A six-Stage Tandem Bearing T6AR Combined With An Axial Cylindrical Roller Bearing Of Series 894

The T-2872-6A bearing is a Extruder Tandem roller Bearing with an inner diameter of 29 mm , an outer diameter of 75 mm, a width of 165 mm. It typically uses P5 P4 Grade grade precision tolerances and features a Brass or Nylon cage, steel rings. It primarily bears Radial, Its dynamic radial rated load is approximately 450, its static radial rated load is approximately 1300. It uses C0 C3 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: tandem roller bearing

Application: extrusion equipment gearbox roller bearings

Dimensions:

Inside Diameter:

29 mm

Outside Diameter:

75 mm

Thickness:

165 mm

Weight:

3.5 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

450

Static load Capacity, Radial (Cor):

1300

Specifications:

Old Designations:

t-2872-6a

HS Code:

8482500090

Structure:

Thrust cylindrical roller bearing

Number of Rows:

6 rows

Demensions:

29x75x165mm

Radial Clearance Trade No.:

C0 C3

Precision Rating:

P5 P4 Grade

Load Direction:

Radial

Bearing Material:

Steel

Cage Type:

windows

Cage material:

Brass or Nylon

Roller Material:

steel

Bore Type:

cylindrical bore

Operating Temperature Range:

80-120 degree

System of Measurement:

GBT3077

Series:

Thrust cylindrical roller bearing

Rolling Element:

roller

Transaction Information:

Transport Package:

carton

Service:

Offer technology service

Shipping Ways:

By Sea or By air

Country of Origin:

China Luoyang

Stock:

100 Piece

Production Capacity:

1000PCS/ 6 months

Port:

shanghai or qingdao

Payment term:

T/T,L/C

Delivery time:

in stock

Detailed description

Cylindrical Roller Thrust Bearing T-2872-6A factory in stock

Bearing factory Number: T-2872-6A

Item code:T-2872-6A

Original place:China LuoYang

Lubrication:Oil lubrication

Boundary metric size: 29*75*165mm

Outer diameter D:75mm

Inner diameter d:29mm

The total height:165mm

Bore: Cylindrical bore

Rows No.:6 rows

Bearing structure:Basic type tandem thrust cylindrical roller bearing

Manufacturer part code:t-2872-6A

Basic dynamic load ratiing Cr:495KN

Basic static load rating Cor:1400KN

T-2872-6A:The Axial Forces Are Supported By A six-Stage Tandem Bearing T6AR Combined With An Axial Cylindrical Roller Bearing Of Series 894

Application:gearboxes for single and twin screw extrudes in the rubber and plastics industry.

deep hole drilling equipment friction welding machines.

Share this product to:

Let more people see your product

How can you buy Cylindrical Roller Thrust Bearing T-2872-6A Factory In Stock on the Internet?
High quality T-2872-6A ( 3.5 kg Mass, ID: 29 mm OD: 75 mm WD: 165 mm , Thrust cylindrical roller bearing Series , 6 rows Rows , C0 C3 Radial Clearance , P5 P4 Grade Accuracy Class , Steel Material , 450 Radial dynamic , 1300 Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. T-2872-6A. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
