Cross Cylindrical Roller Ring E.1144.30.12.D.3-RV With External Tooth

🔍

E.1144.30.12.D.3-RV

Bore Diameter:870 mm

Outside Diameter:1144 mm

Width:100 mm

Weight:230 kg

Reference FOB Price:US300 ~ 2000 / Piece

Min. Order:1 Piece

The E.1144.30.12.D.3-RV bearing is a cross roller bearing with an inner diameter of 870 mm , an outer diameter of 1144 mm, a width of 100 mm. It typically uses P0, P6, P5, P4, P2 grade precision tolerances and features a Nylon/steel/copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

Dimensions:

Inside Diameter:

870 mm

Outside Diameter:

1144 mm

Thickness:

100 mm

Weight:

230 KG

Inner Ring Width:

Fillet Radius (ra):

Limiting speed (Oil rpm):

EP2

Specifications:

HS Code:

8482109000

Structure:

cross roller slewing bearing

Number of Rows:

single row

Demensions:

1144*870*100

Brand:

LYMC

Precision Rating:

P0, P6, P5, P4, P2

Bearing Material:

42CrMo/50Mn/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel roller

Gear Options:

external gear

Transaction Information:

Transport Package:

export wooden cases

Service:

reply within 24 hours, oem service, design service, technical support

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Quality Control:

iso9001, QC report

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-30 days

Detailed description

Cross cylindrical roller ring E.1144.30.12.D.3-RV with external tooth

Material:50mn/42crmo/custom

Structure:single row cylindrical crossed roller slewing bearing

Mass(weight):230kgs

Da(outer dia.):1144mm

Di(inner dia.):870mm

La(outer ring hole diameter):1050mm

Li(inner ring hole diameter):910mm

m(module):11

z(teeth no.):102

H(overall height):100mm

Ha(outer ring height):84mm

Hc(inner ring height):84mm

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Certificated has 3.1,3.2,ABS,CCS.Our team with technical and full experience in the bearing industry. And with a worldwide network, allows us to resolve any bearing issue for you. LYMC bearings are the perfect alternative to the most common and well-known brands.

Single row cross roller slewing bearing
Composed of two or three rings. compact structure, light weight, high manufacturing accuracy, small assembly gap and high requirement for installation accuracy. Rollers are 1:1 cross-arranged.
Can be bear axial force, overturning moment and large radial force at the same time,and widely used in lifting transportation,construction machinery and precision products.

More type we manufacture:

E.1144.30.12.D.1-RV
E.1144.30.12.D.3-RV
E.1390.30.15.D.1-R
E.1476.45.15.D.1-RV
E.1604.50.10.D.1-RV
E.1805.45.17.D.3-R

Any interests or inquiry, please contact us freely~

Share this product to:

Let more people see your product

How can you buy Cross Cylindrical Roller Ring E.1144.30.12.D.3-RV With External Tooth on the Internet?
High quality E.1144.30.12.D.3-RV ( 230 kg Mass, ID: 870 mm OD: 1144 mm WD: 100 mm , single row Rows , P0, P6, P5, P4, P2 Accuracy Class , 42CrMo/50Mn/custom Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. E.1144.30.12.D.3-RV. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- RKS.161.14.0544 cross roller slewing bearing ring with 640.3*474*56mm
- RKS.161.14.0544 external gear cross roller slewing bearing with 640.3*474*56mm De:640.3mm Dm:544mm Di:474mm
- RKS.161.14.0414 external gear cross roller slewing bearing ring with 503.3*344*56mm
- RKS.161.14.0414 external gear cross roller slewing bearing with 503.3*344*56mm De:503.3mm Dm:414mm Di:344mm
- High precision rotary table XSU140414 cross roller slewing bearing manufacturing
- High precision rotary table XSU140414 cross roller slewing bearing manufacturing Material:42CrMo/50Mn/42CrMo4 Structure:cross roller
- High quality industry robot RB9016 cross roller slewing bearing manufacturing
- High quality industry robot RB9016 cross roller slewing bearing manufacturing Material:42CrMo/50Mn/42CrMo4 Structure:cross
- VLA 200744N slewing bearing turnable ring with external teeth
- VLA 200744N slewing bearing turnable ring with external teeth information: The outer ring

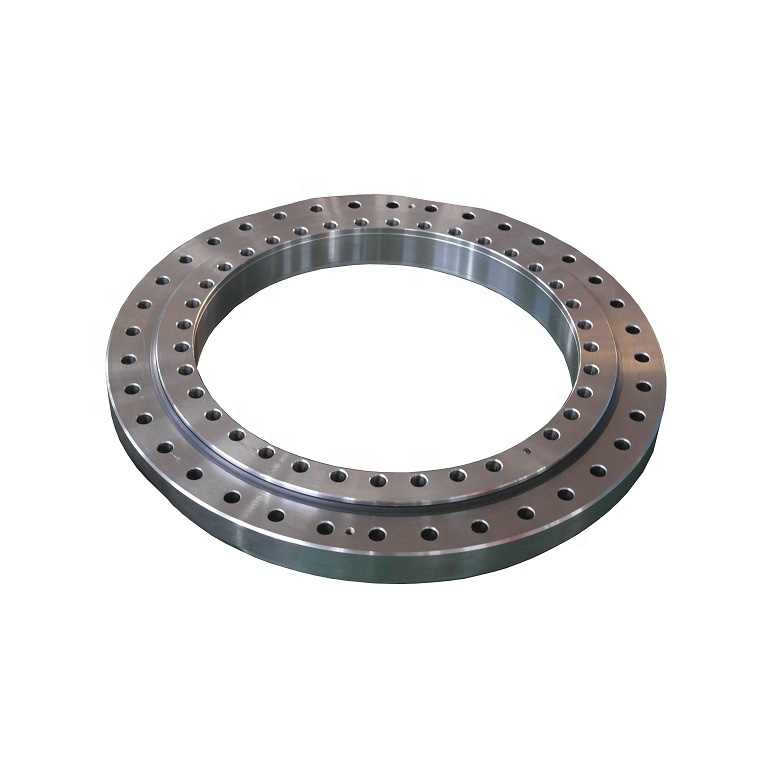

- 03 0217 00 four point contact ball bearing ring without gear
