CRBS 508 V U T1 Sealed Slim Type Crossed Roller Bearings Full Complement

🔍

CRBS 508 V U T1

Bore Diameter:50 mm

Outside Diameter:66 mm

Width:8 mm

Weight:0.084 kg

Min. Order:1 Piece

The CRBS 508 V U T1 Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.

The CRBS 508 V U T1 bearing is a Sealed Slim Type Crossed Roller Bearings Full complement with an inner diameter of 50 mm , an outer diameter of 66 mm, a width of 8 mm. It typically uses P0 (ISO Class NORMAL / ABEC-1) grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 6930 N, its static radial rated load is approximately 9800 N. It uses T1 standard radial clearance, U = One side sealed type, Special synthetic rubber. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

50 mm

Outside Diameter:

66 mm

Thickness:

8 mm

Weight:

0.084 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

6930

Static load Capacity, Radial (Cor):

9800

Reference speed (Grease rpm):

690

Specifications:

Structure:

Crossed Roller Bearings

Number of Rows:

One

Radial Clearance Trade No.:

Precision Rating:

P0 (ISO Class NORMAL / ABEC-1)

Load Direction:

radial, thrust and moment

Bearing Material:

50Mn,42CrMo

Seals Type:

U = One side sealed

Seal Material:

Special synthetic rubber

Rolling Mlement Material:

GCr15

Bore Type:

Cylindrical

Operating Temperature:

-20 to 120 °C

System of Measurement:

Metric

Series:

CRBS..VUU

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

30 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

CRBS 508 V U T1 bearings ( 50 mm x 66 mm x 8 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.

Part Number	CRBS 508 V U T1
Bearing Type	Sealed Slim Type Crossed Roller Bearings Full complement
Mounting holes	No
Type	CRBS..VUU
Seal Type	U = One side sealed
Seal Material	Special synthetic rubber
Bore Type	Cylindrical
Rolling Element Type	cylindrical rollers
Oil holes	No
Manufacturer Part Code	CRBS508VUT1
Load	radial, thrust and moment
Interchangeable	IKO CRBS 508 V U T1
Units	Metric
Rows NO.	One
Rolling Element Material	GCr15
Inner/Outer Ring Material	50Mn,42CrMo
Lubrication	grease
Accuracy class	P0 (ISO Class NORMAL / ABEC-1)
Guidance of cylindrical roller	Full complement
Temperature - T(min) [°C]	-20
Temperature - T(max) [°C]	120

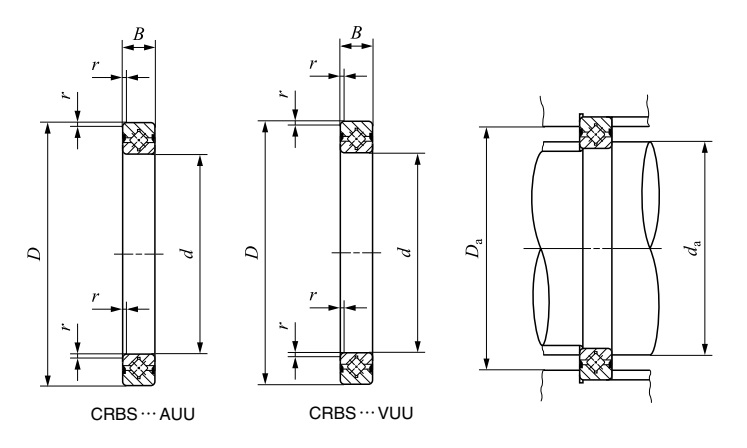

Shaft diameter [inch]	1.969
d φ Inside [inch]	1.969
D Φ Outside [inch]	2.598
B Width [inch]	0.315
r min Chamfer [inch]	0.016
da Mounting dimensions [inch]	2.126
Da Mounting dimensions [inch]	2.402
n_B Reference speed (grease) [r/min]	690
C_r Radial Dynamic [lbf]	1557
C_0r Radial Static [lbf]	2203
Internal Clearance	T1
Radial internal clearances - T1	min: -8 µm , max: 0 µm
m Bearing Weight [kg]	0.084

The CRBS 508 V U T1 Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.

Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
