CRBH208AUUT1 Sealed High Rigidity Crossed Roller Bearings Two Sides Sealed Type With Separator
The CRBH208AUUT1 Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.
The CRBH208AUUT1 bearing is a Sealed High Rigidity Crossed Roller Bearings Two sides sealed type with separator with an inner diameter of 20 mm , an outer diameter of 36 mm, a width of 8 mm. It typically uses P0 (ISO Class NORMAL / ABEC-1) grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 2910 N, its static radial rated load is approximately 2430 N. It uses T1 standard radial clearance, UU = Two sides sealed type, Special synthetic rubber. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
CRBH208AUUT1 bearings ( 20 mm x 36 mm x 8 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.
| Part Number | CRBH208AUUT1 |
| Bearing Type | Sealed High Rigidity Crossed Roller Bearings Two sides sealed type with separator |
| Mounting holes | No |

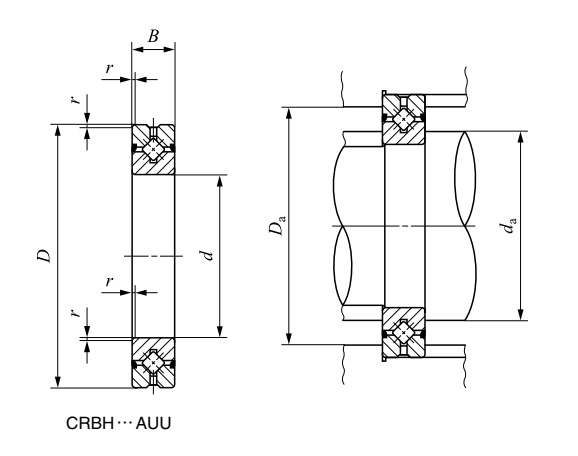

| Type | CRBH..AUU |
| Seal Type | UU = Two sides sealed |
| Seal Material | Special synthetic rubber |
| Bore Type | Cylindrical |
| Rolling Element Type | cylindrical rollers |
| Oil holes | Outer ring has an oil groove and two oil holes |
| Manufacturer Part Code | CRBH 208 A UU T1 |
| Load | radial, thrust and moment |
| Interchangeable | IKO CRBH208AUUT1 |
| Units | Metric |
| Rows NO. | One |
| Rolling Element Material | GCr15 |
| Inner/Outer Ring Material | 50Mn,42CrMo |
| Lubrication | ALVANIA EP grease 2 (pre-packed) |
| Accuracy class | P0 (ISO Class NORMAL / ABEC-1) |
| Guidance of cylindrical roller | with separator |
| Temperature - T(min) [°C] | -20 |
| Temperature - T(max) [°C] | 110 |
| Shaft diameter [inch] | 0.787 |
| d φ Inside [inch] | 0.787 |
| D Φ Outside [inch] | 1.417 |
| B Width [inch] | 0.315 |
| r min Chamfer [inch] | 0.012 |
| da Mounting dimensions [inch] | 0.945 |
| Da Mounting dimensions [inch] | 1.220 |
| nB Reference speed (grease) [r/min] | 2143 |
| Cr Radial Dynamic [lbf] | 654 |
| C0r Radial Static [lbf] | 546 |
| Internal Clearance | T1 |
| Radial internal clearances - T1 | min: -10 µm , max: 0 µm |
| m Bearing Weight [kg] | 0.04 |
| Similar Model | CRBH 208 A UU T1 P6 CRBH 208 A UU T1 P5 CRBH 208 A UU T1 P4 CRBH 208 A UU T1 P2 |
The CRBH208AUUT1 Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.
Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
