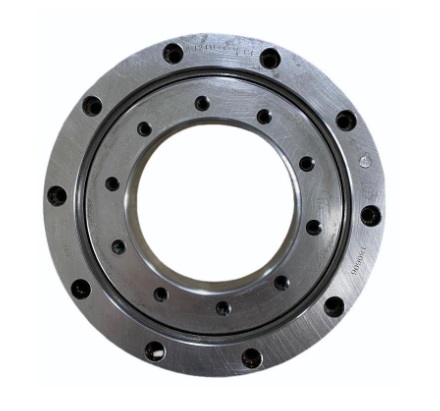

CRBF5515ATUUC1 Sealed High Rigidity Crossed Roller Bearings (Mounting Holed Type)

🔍

CRBF5515ATUUC1

Bore Diameter:55 mm

Outside Diameter:120 mm

Width:15 mm

Weight:0.96 kg

Min. Order:1 Piece

The CRBF5515ATUUC1 Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.

The CRBF5515ATUUC1 bearing is a Sealed High Rigidity Crossed Roller Bearings (Mounting Holed Type) with an inner diameter of 55 mm , an outer diameter of 120 mm, a width of 15 mm. It typically uses P0 (ISO Class NORMAL / ABEC-1) grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 20100 N, its static radial rated load is approximately 27700 N. It uses C1 standard radial clearance, UU = Two sides sealed type, Special synthetic rubber. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

55 mm

Outside Diameter:

120 mm

Thickness:

15 mm

Weight:

0.96 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

20100

Static load Capacity, Radial (Cor):

27700

Reference speed (Grease rpm):

686

Specifications:

Structure:

Crossed Roller Bearings

Number of Rows:

One

Radial Clearance Trade No.:

Precision Rating:

P0 (ISO Class NORMAL / ABEC-1)

Load Direction:

radial, thrust and moment

Bearing Material:

50Mn,42CrMo

Seals Type:

UU = Two sides sealed

Seal Material:

Special synthetic rubber

Rolling Mlement Material:

GCr15

Bore Type:

Cylindrical

Operating Temperature:

-20 to 110 °C

System of Measurement:

Metric

Series:

CRBF..ATUU

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

30 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

CRBF5515ATUUC1 bearings ( 55 mm x 120 mm x 15 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.

Part Number	CRBF5515ATUUC1
Bearing Type	Sealed High Rigidity Crossed Roller Bearings (Mounting Holed Type)
Mounting holes	T = With female threaded mounting holes on the inner ring
Type	CRBF..ATUU
Seal Type	UU = Two sides sealed
Seal Material	Special synthetic rubber
Bore Type	Cylindrical
Rolling Element Type	cylindrical rollers
Oil holes	Outer ring has an oil groove and two oil holes
Manufacturer Part Code	CRBF 5515 AT UU C1
Load	radial, thrust and moment
Interchangeable	IKO CRBF5515ATUUC1
Units	Metric
Rows NO.	One
Rolling Element Material	GCr15
Inner/Outer Ring Material	50Mn,42CrMo
Lubrication	ALVANIA EP grease 2 (pre-packed)
Accuracy class	P0 (ISO Class NORMAL / ABEC-1)
Guidance of cylindrical roller	with separator
Temperature - T(min) [°C]	-20
Temperature - T(max) [°C]	110
Shaft diameter [inch]	2.165
d φ Inside [inch]	2.165
D Φ Outside [inch]	4.724
B Width [inch]	0.591
r₁ min Chamfer [inch]	0.024
r₂ min Chamfer [inch]	0.024
PCD₁ Mounting holes [inch]	2.559
Inner ring Mounting holes	8-M5 through
PCD₂ Mounting holes [inch]	4.134
Outer ring Mounting holes	8-φ5.5 through, φ9.5 counter bore depth 5.4
da Mounting dimensions [inch]	2.992
Da Mounting dimensions [inch]	3.701
n_B Reference speed (grease) [r/min]	686
C_r Radial Dynamic [lbf]	4518
C_0r Radial Static [lbf]	6226
Internal Clearance	C1
Radial internal clearances - C1	min: 0 µm , max: 15 µm
m Bearing Weight [kg]	0.96
Similar Model	CRBF 5515 AT UU C1 P6 CRBF 5515 AT UU C1 P5 CRBF 5515 AT UU C1 P4 CRBF 5515 AT UU C1 P2

The CRBF5515ATUUC1 Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.

Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
