BCZ-0532/PEX Bore 130 Mm, Backing Bearings For Cluster Mills
The BCZ-0532/PEX Backed bearings are suitable for heavy-duty rolling equipment such as multi-roll cold rolling mills. Classic applications include backing rolls in multi-roll mills, straighteners, bending machines, support rolls in Sendzimir mills, and work roll support systems in strip mills.
The BCZ-0532/PEX bearing is a Backing bearings for cluster mills with an inner diameter of 130 mm , an outer diameter of 300 mm, a width of 172.65 mm. It typically uses NSTD grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic radial rated load is approximately 1135092 N, its static radial rated load is approximately 1455619 N. Seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
BCZ-0532/PEX bearings ( 130 mm x 300 mm x 172.65 mm) have the advantages of High rigidity, high load-bearing capacity and precision retention, and are therefore widely used in the Backing for multi-roll mills.
| Part Number | BCZ-0532/PEX |
| Interchangeable | SKF BCZ-0532/PEX |
| Cage | Machined brass cage, roller centred |
| Bearing Type | Backing bearings for cluster mills |
| Load | radial |
| Accuracy class | NSTD |
| Coating | NO |
| Bearing part | Complete |
| Design | With axial guidance |
| Row NO. | Two |
| Seal | Seal on both sides |
| Sealing type | Contact |
| Units | Metric |
| Manufacturer Part Code | BCZ-0532/PEX |
| Series | BCZ series(BCZ-05../PEX) |
| Locating feature | NO |
| Application | cluster mills |
| Relubrication feature | Yes |
| Weight [lb] | 151.0151 |
| Cr Radial Dynamic [lbf] | 255168 |
| C0r Radial Static [lbf] | 327223 |
| Pu Fatigue load limit [lbf] | 36173 |
| Fr max. Dynamic radial loads [lbf] | 175263 |
| F0r max. Static radial loads [lbf] | 251521 |

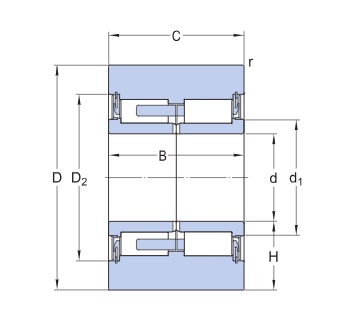

| d φ Inside [inch] | 5.1181 |
| D Φ Outside [inch] | 11.8110 |
| B Thickness [inch] | 6.7972 |
| C [inch] | 6.7972 |
| r min. Chamfer [inch] | 0.106 |
| d1 [inch] | 6.6732 |
| D2 [inch] | 9.0551 |
| H(max.) Section height [inch] | 3.346 |
The BCZ-0532/PEX Backed bearings primarily consist of an inner ring, an outer ring, single-row, double-row, or triple-row cylindrical rollers, and a cage. The outer ring is exceptionally thick, and the rollers and raceways feature a logarithmic profile design to optimize load distribution and reduce edge stress.
Backed bearings possess extremely high load-carrying capacity, capable of withstanding heavy loads and impact loads, while exhibiting low friction, minimal heat generation, and a long service life. The outer surface of the outer ring also utilizes a logarithmic profile, reducing edge loads during operation and improving operational reliability.
