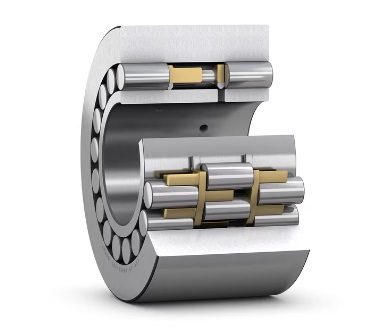

BC2B 320432 AE Bore 130 Mm, Backing Bearings For Cluster Mills
The BC2B 320432 AE Backed bearings are suitable for heavy-duty rolling equipment such as multi-roll cold rolling mills. Classic applications include backing rolls in multi-roll mills, straighteners, bending machines, support rolls in Sendzimir mills, and work roll support systems in strip mills.
The BC2B 320432 AE bearing is a Backing bearings for cluster mills with an inner diameter of 130 mm , an outer diameter of 300.02 mm, a width of 172.65 mm. It typically uses P4 (ABEC 7) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic radial rated load is approximately 1076405 N, its static radial rated load is approximately 1497163 N. It uses NSTD standard radial clearance, Seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
BC2B 320432 AE bearings ( 130 mm x 300.02 mm x 172.65 mm) have the advantages of High rigidity, high load-bearing capacity and precision retention, and are therefore widely used in the Backing for multi-roll mills.
| Part Number | BC2B 320432 AE |
| Interchangeable | SKF BC2B 320432 AE |
| Cage | Machined brass cage, roller centred |
| Bearing Type | Backing bearings for cluster mills |
| Load | radial |
| Accuracy class | P4 (ABEC 7) |
| Coating | NO |
| Bearing part | Complete |
| Design | With axial guidance |
| Internal clearance | NSTD |
| Row NO. | Two |
| Seal | Seal on both sides |
| Sealing type | Fey-ring |
| Number of holes | 6 |
| Units | Metric |
| Manufacturer Part Code | BC2B320432AE |
| Series | BC2B series(BC2B 3204.. AE) |
| Application | cluster mills |
| Relubrication feature | Yes |
| Weight [lb] | 149.4719 |
| Cr Radial Dynamic [lbf] | 241975 |
| C0r Radial Static [lbf] | 336562 |
| Pu Fatigue load limit [lbf] | 38027 |
| Fr max. Dynamic radial loads [lbf] | 155895 |
| F0r max. Static radial loads [lbf] | 337027 |
| d φ Inside [inch] | 5.1181 |
| D Φ Outside [inch] | 11.8118 |
| B Thickness [inch] | 6.7972 |
| C [inch] | 6.7559 |
| b [inch] | 0.5906 |
| K [inch] | 0.3150 |
| r min. Chamfer [inch] | 0.106 |
| d1 [inch] | 7.9134 |
| D1 [inch] | 7.9921 |
| H(max.) Section height [inch] | 3.346 |
The BC2B 320432 AE Backed bearings primarily consist of an inner ring, an outer ring, single-row, double-row, or triple-row cylindrical rollers, and a cage. The outer ring is exceptionally thick, and the rollers and raceways feature a logarithmic profile design to optimize load distribution and reduce edge stress.
Backed bearings possess extremely high load-carrying capacity, capable of withstanding heavy loads and impact loads, while exhibiting low friction, minimal heat generation, and a long service life. The outer surface of the outer ring also utilizes a logarithmic profile, reducing edge loads during operation and improving operational reliability.
