7310-B-XL-TVP Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

7310-B-XL-TVP

Bore Diameter:50 mm

Outside Diameter:110 mm

Width:27 mm

Weight:1.055 kg

Min. Order:1 Piece

The 7310-B-XL-TVP Single-row angular contact ball bearings are widely used in high-speed, high-precision small to medium-sized equipment, such as: machine tool spindles (machining centers, grinding machines), industrial robots (joints), turbochargers, medical equipment (high-speed drills), electric vehicle drive motors, and precision measuring instruments.

The 7310-B-XL-TVP bearing is a Angular contact ball bearings, single row with an inner diameter of 50 mm , an outer diameter of 110 mm, a width of 27 mm. It typically uses P6 grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 79953 N, its static radial rated load is approximately 49962 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

50 mm

Outside Diameter:

110 mm

Thickness:

27 mm

Weight:

1.055 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

79953 N

Static load Capacity, Radial (Cor):

49962 N

Fatigue Load Limit, Radial:

3490 N

Reference speed (Grease rpm):

6099

Limiting speed (Oil rpm):

8388

Specifications:

Old Designations:

7310-B-TVP

Structure:

Single row angular contact ball bearings

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

Open

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-30 to 120 °C

Series:

73..-B-XL-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

7310-B-XL-TVP bearings ( 50 mm x 110 mm x 27 mm) have the advantages of High speed, high precision, Low friction and low heat generation, and are therefore widely used in the Machine tool spindles, high-speed motors, ball screws, industrial robots, precision instruments, medical equipment, and aerospace components.

Part Number	7310-B-XL-TVP
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	73..-B-XL-TVP
X-Life	XL long life design
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	7310-B-TVP
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Equivalent	7310-B-TVP,7310B.TVP
Lubricant	Without
Seal type	Open
Heat stabilization	S0 = up to 150°
m Weight [kg]	1.055
Reference From	FAG 7310-B-XL-TVP
Dimensions
d φ Inside [inch]	1.969
D Φ Outside [inch]	4.331
B Width [inch]	1.063
r(min.) [inch]	0.079
r₁(min.) [inch]	0.039
D₁ [inch]	3.449
d₁ [inch]	2.878
a [inch]	1.854
Performance
C_r Radial Dynamic [N]	79953
C_0r Radial static [N]	49962
C_ur Radial Fatigue [N]	3490
n_G Limiting speed (oil) [r/min]	8388
n_B Reference speed (grease) [r/min]	6099
Mounting dimensions
d_a(min.) [inch]	2.402
D_a(max.) [inch]	3.898
D_b(max.) [inch]	4.110
r_a(max.) [inch]	0.079
r_a1(max.) [inch]	0.039

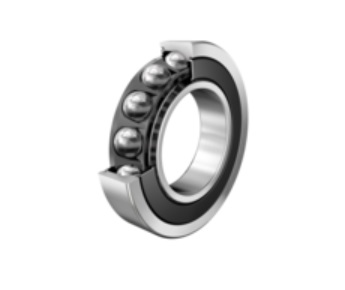

The 7310-B-XL-TVP Single-row angular contact ball bearings mainly consist of an inner ring, an outer ring, steel balls, and a cage. The raceways of the inner and outer rings are offset from each other to form a contact angle, typically 15°, 25°, or 40°. They feature a non-separable design, and the cage can be made of stamped steel, solid brass, or phenolic resin.

Single-row angular contact ball bearings can simultaneously withstand radial loads and unidirectional axial loads. The larger the contact angle, the stronger the axial load capacity. When installed in pairs (back-to-back, face-to-face, or tandem), they can withstand bidirectional axial loads and significantly improve system rigidity. They possess high-speed, low-friction characteristics, with precision grades ranging from P4 to P2, making them suitable for precision transmissions.
