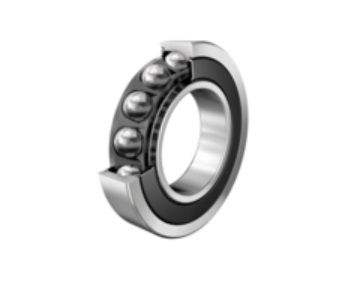

7004B.2RS.TVP Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

7004B.2RS.TVP

Bore Diameter:20 mm

Outside Diameter:42 mm

Width:12 mm

Weight:0.06 kg

Min. Order:1 Piece

The 7004B.2RS.TVP

The 7004B.2RS.TVP bearing is a Angular contact ball bearings, single row with an inner diameter of 20 mm , an outer diameter of 42 mm, a width of 12 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 14497 N, its static radial rated load is approximately 7976 N. 2RS = Contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 7004-B-2RS-TVP,7004B.2RS.TVP

Dimensions:

Inside Diameter:

20 mm

Outside Diameter:

42 mm

Thickness:

12 mm

Weight:

0.06 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

14497 N

Static load Capacity, Radial (Cor):

7976 N

Fatigue Load Limit, Radial:

546 N

Limiting speed (Oil rpm):

9794

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

2RS = Contact seal on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 100 °C

Series:

70..-B-XL-2RS-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	7004B.2RS.TVP
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	70..-B-XL-2RS-TVP
X-Life	XL long life design
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	7004-B-2RS-TVP
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Equivalent	7004-B-2RS-TVP,7004B.2RS.TVP
Lubricant	GA14 = Ball bearing grease, low noise
Seal type	2RS = Contact seal on both sides
Heat stabilization	S0 = up to 150°
m Weight [kg]	0.06
Reference From	FAG 7004B.2RS.TVP
Dimensions
d φ Inside [inch]	0.787
D Φ Outside [inch]	1.654
B Width [inch]	0.472
r(min.) [inch]	0.024
r₁(min.) [inch]	0.012
D₁ [inch]	1.371
D₂ [inch]	1.398
D₃ [inch]	1.567
d₁ [inch]	1.139
d₂ [inch]	1.044
a [inch]	0.764
Performance
C_r Radial Dynamic [N]	14497
C_0r Radial static [N]	7976
C_ur Radial Fatigue [N]	546
n_G Limiting speed (oil) [r/min]	9794
Mounting dimensions
d_a(min.) [inch]	0.913
D_a(max.) [inch]	1.528
D_b(max.) [inch]	1.575
r_a(max.) [inch]	0.024
r_a1(max.) [inch]	0.012
