6815VV Bearing 75x95x10mm
6815VV
Bore Diameter:75 mm
Outside Diameter:95 mm
Width:10 mm
Weight:0.149 kg
The 6815VV bearing is a Thin Section Bearing with an inner diameter of 75 mm , an outer diameter of 95 mm, a width of 10 mm. It typically uses P6 grade precision tolerances and VV Non-contact Sealed type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
×
Detailed description
Bearing 6815VV | Thin Section Ball Bearing, Thin-Wall Bearing
The bearing 6800 type is the thin section ( thin-wall) bearing with deep groove ball structure, it is thiner than 6900 (61900) series, with metric dimension. 6815VV is one item of 6900 series and widely used in the relevant application.
Suffix: VV - Non-contact Sealed
| Model: | 6815VV |
| Inside diameter (ID d): | 75 mm |
| Outside diameter (OD D): | 95 mm |
| Thickness (B): | 10 mm |
| Basic dynamic load rating (Cr): | 12.5 kN |
| Basic static load rating (Cor): | 13.9 kN |
| Reference speed (Grease rpm): | 3600 r/min |
| Limiting speed (Oil rpm): | 7500 r/min |
| Mass (M): | 0.149 kg |
| Brand: | SYMH |
| Price: | USD2.55 |
| Category: | Deep Groove Ball Bearings |
For the more detials, please contact our servicer. We also can accept customization and OEM for the special bearings for the application.
Share this product to:
Let more people see your product
-

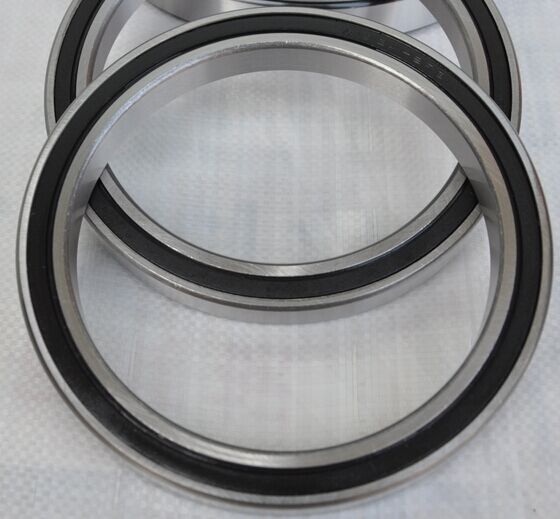

- 61810-2RS Thin Section Bearing
- Minhang Bearing supply 61810-2RS bearing with selecte material and optimized design. The
-
- 70819V 7130819 Bearing 95x120x9mm
- Bearing 70819V 7130819 is a Full Complement Angular Contact Ball Bearing without
-

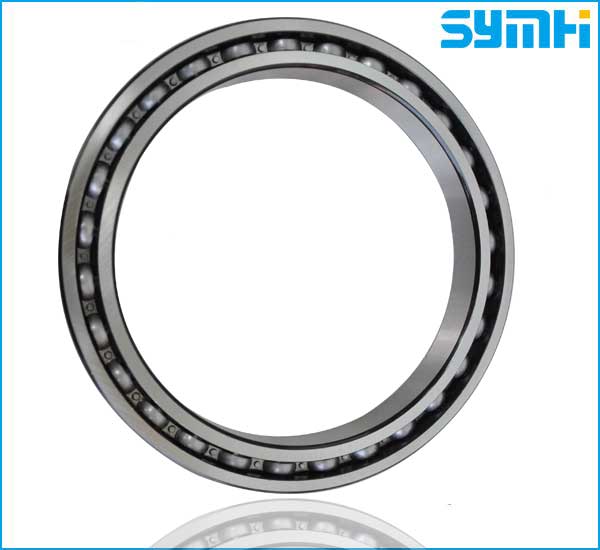

- 61710 Bearing 50x62x6mm
