573320 Bore 360 Mm, Tapered Roller Thrust Bearings Double Acting, With Spacer, Brass Cage
The 573320 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 573320 bearing is a Tapered Roller Thrust Bearings double acting, with spacer with an inner diameter of 360 mm , an outer diameter of 530 mm, a width of 145 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears axial, Its dynamic radial rated load is approximately 1500000 N, its static radial rated load is approximately 7800000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
573320 bearings ( 360 mm x 530 mm x 145 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.

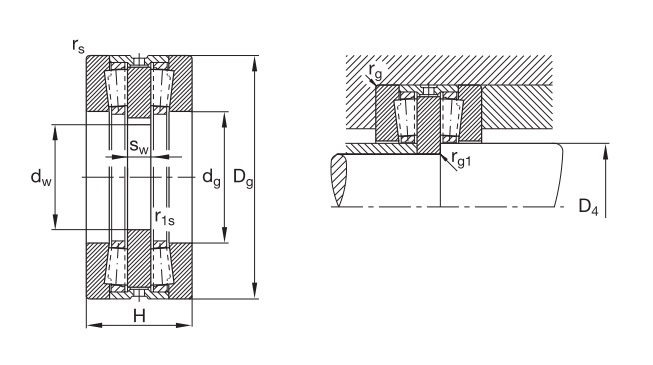

| Part Number | 573320 |
| Interchangeable | FAG 573320 |
| Cage | brass cage |
| Seal | Open |
| Bearing Type | Tapered Roller Thrust Bearings double acting, with spacer |
| Bearing Weight [lb] | 229.278 |
| dw Inside [inch] | 14.173 |
| dg [inch] | 16.142 |
| Dg Outside [inch] | 20.866 |
| Sw [inch] | 1.772 |
| H Height [inch] | 5.709 |
| rs min Chamfer | 4 mm |
| r1s min Chamfer | 2 mm |
| Cr Radial Dynamic [lbf] | 337200 |
| C0r Radial Static [lbf] | 1753440 |
| D4 max [inch] | 15.669 |
| rg max Fillet radius [inch] | 0.118 |
| rg1 max Fillet radius [inch] | 0.079 |
