541397 Bore 203.2 Mm, Tapered Roller Bearings, Double Row For Loose Fit On The Roll Neck
The 541397 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 541397 bearing is a Tapered Roller Bearings, double row for loose fit on the roll neck with an inner diameter of 203.2 mm , an outer diameter of 368.3 mm, a width of 158.75 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, its static radial rated load is approximately 3450000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
541397 bearings ( 203.2 mm x 368.3 mm x 158.75 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 541397 |
| Interchangeable | FAG 541397 |

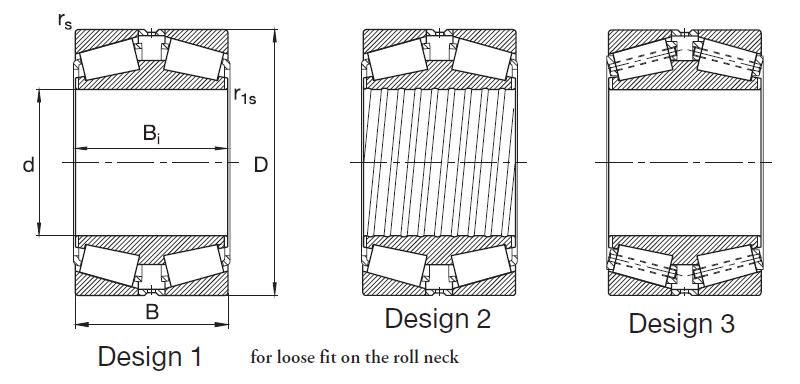

| Desgin Figure | 1 |
| Cage | Stamping steel cage |
| Arrangement | face-to-face (><) |
| Seal | Open |
| Bearing Type | Tapered Roller Bearings, double row for loose fit on the roll neck |
| Design type | TDI |
| Equivalent Timken (TDI-Type) | EE420800DW.450 |
| Bearing Weight [lb] | 169.975 |
| d φ Inside [inch] | 8.000 |
| D Φ Outside [inch] | 14.500 |
| B Width [inch] | 6.250 |
| Bi Width [inch] | 6.000 |
| rs min Chamfer Cup | 3.3 mm |
| r1s min Chamfer Cone | 3.3 mm |
| C0r Radial Static [lbf] | 775560 |
| Cr Radial Dynamic ISO 281 [lbf] | 382160 |
| Cr Radial Dynamic (value for housings with angular freedom) [lbf] | 440608 |
| Cr90 Equivalent load rating [lbf] | 112400 |
| Ca90 Equivalent load rating [lbf] | 44060 |
| Factor | |
| e | 0.39 |
| K Thrust factor | 1.48 |
