544753 Bore 280 Mm, Tapered Roller Bearings, Double Row With Extended Cone
The 544753 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 544753 bearing is a Tapered Roller Bearings, double row with extended cone with an inner diameter of 280 mm , an outer diameter of 460 mm, a width of 220 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, its static radial rated load is approximately 6300000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
544753 bearings ( 280 mm x 460 mm x 220 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 544753 |
| Interchangeable | FAG 544753 |

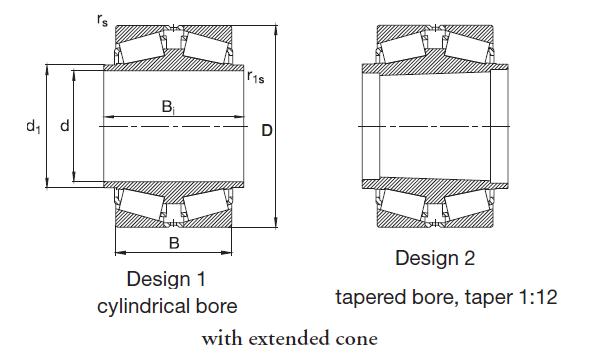

| Desgin Figure | 2 |
| Cage | Stamping steel cage |
| Arrangement | face-to-face (><) |
| Seal | Open |
| Bearing Type | Tapered Roller Bearings, double row with extended cone |
| Bearing Weight [lb] | 374.782 |
| d φ Inside [inch] | 11.024 |
| D Φ Outside [inch] | 18.110 |
| B Width [inch] | 8.661 |
| Bi Width [inch] | 11.024 |
| d1 [inch] | 12.250 |
| rs min Chamfer Cup | 6 mm |
| r1s min Chamfer Cone | 1 mm |
| C0r Radial Static [lbf] | 1416240 |
| Cr Radial Dynamic ISO 281 [lbf] | 708120 |
| Cr Radial Dynamic (value for housings with angular freedom) [lbf] | 820520 |
| Cr90 Equivalent load rating [lbf] | 209064 |
| Ca90 Equivalent load rating [lbf] | 71936 |
| Factor | |
| e | 0.35 |
| K Thrust factor | 1.67 |
