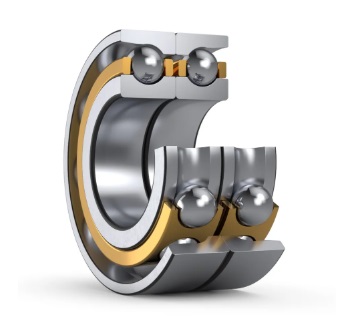

511044A Bore 100 Mm, Angular Contact Ball Bearings, Double Row For Wire Mills, Machined Brass Cage
The 511044A Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 511044A bearing is a Angular Contact Ball Bearings, double row non-separable Thrust bearings for wire mills with an inner diameter of 100 mm , an outer diameter of 170 mm, a width of 60.3 mm. Bearing steel rings, Bearing steel rolling mlement. It primarily bears Radial and axial loads, Its dynamic radial rated load is approximately 140000 N, its static radial rated load is approximately 170000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
511044A bearings ( 100 mm x 170 mm x 60.3 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 511044A |
| Interchangeable | FAG 511044A |
| Desgin Figure | 2 |
| Cage | Machined Brass Cage |
| Arrangement | DB (<>) Back-to-Back |
| Seal | Open |
| Bearing Type | Angular Contact Ball Bearings, double row non-separable Thrust bearings for wire mills |
| Bearing Weight [lb] | 12.280 |
| d φ Inside [inch] | 3.937 |
| D Φ Outside [inch] | 6.693 |
| B Width [inch] | 2.374 |
| Bi Width [inch] | 2.374 |
| rs min Chamfer | 2 mm |
| r1s min Chamfer | 2 mm |
| Cr Radial Dynamic [lbf] | 31472 |
| C0r Radial Static [lbf] | 38216 |
| D1 min [inch] | 4.370 |
| D2 max [inch] | 6.260 |
| rg max Fillet radius [inch] | 0.079 |
| rg1 max Fillet radius [inch] | 0.079 |
