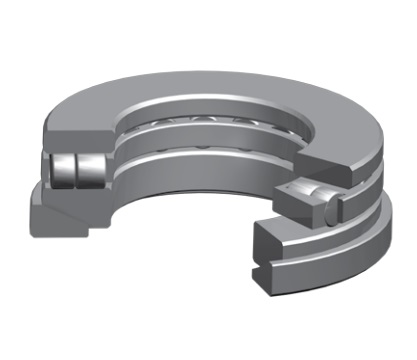

50 TPS 123 Self-aligning Thrust Cylindrical Roller Bearing

🔍

50 TPS 123

Bore Diameter:127 mm

Outside Diameter:317.5 mm

Width:66.675 mm

Weight:27.2 kg

Min. Order:1 Piece

The 50 TPS 123 Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The 50 TPS 123 bearing is a Self-aligning thrust cylindrical roller bearing with an inner diameter of 127 mm , an outer diameter of 317.5 mm, a width of 66.675 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic axial rated load is approximately 1097184 N, its static axial rated load is approximately 5594710 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

127 mm

Outside Diameter:

317.5 mm

Thickness:

66.675 mm

Weight:

27.2 KG

Dynamic load Capacity, axial:

1097184 N

Static load Capacity, axial:

5594710 N

Limiting speed (Oil rpm):

931

Specifications:

Old Designations:

50TPS123

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two or Three

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Metric

Series:

TPS

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

50 TPS 123 bearings ( 127 mm x 317.5 mm x 66.675 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	50 TPS 123
Design type	TPS: Thrust cylindrical roller bearing with self-aligning washer
Bearing Type	Self-aligning thrust cylindrical roller bearing
Interchangeable	TIMKEN 50 TPS 123
Manufacturer Part Code	50TPS123
Series	TPS
Units	Metric
Tolerance class	PN (ABEC-1)
C_0a Axial Static [lbf]	1257690
C_a Axial Dynamic [lbf]	246646
n_G Speed ratings (oil) [rpm]	931
d φ Inside [inch]	5.0000
D Φ Outside [inch]	12.5000
T Width [inch]	2.6250
r Fillet Radius [inch]	0.1260
d₁ [inch]	5.1252
D₁ [inch]	11.9374
Rt Aligning Washer Radius [inch]	19.7500
E (Max) Shoulder Diameter Housing [inch]	7.2480
H (Min) Shoulder Diameter Shaft [inch]	11.3740
Weight [lb]	59.9651

The 50 TPS 123 Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.

Share this product to:

Let more people see your product

How can you buy 50 TPS 123 Self-aligning Thrust Cylindrical Roller Bearing on the Internet?
High quality 50 TPS 123 ( 27.2 kg Mass, ID: 127 mm OD: 317.5 mm WD: 66.675 mm , TPS Series , Two or Three Rows , PN (ABEC-1) Accuracy Class , bearing steel Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 50 TPS 123. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

50 TPS 123 Self-aligning Thrust Cylindrical Roller Bearing
