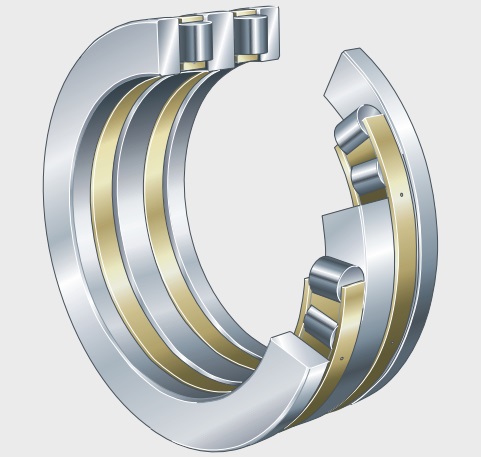

Z-507136.AR Axial Cylindrical Roller Bearings, Double Direction

🔍

Z-507136.AR

Bore Diameter:600 mm

Outside Diameter:800 mm

Width:244 mm

Weight:327 kg

Min. Order:1 Piece

The Z-507136.AR Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The Z-507136.AR bearing is a Axial cylindrical roller bearings, Double direction with an inner diameter of 600 mm , an outer diameter of 800 mm, a width of 244 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 3645947 N, its static axial rated load is approximately 16992296 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

600 mm

Outside Diameter:

800 mm

Thickness:

244 mm

Weight:

327 KG

Dynamic load Capacity, axial:

3645947 N

Static load Capacity, axial:

16992296 N

Fatigue Load Limit, Axial:

1116660 N

Limiting speed (Oil rpm):

414

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

GCr15SiMn

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 150 °C

System of Measurement:

Metric

Series:

Z-507..AR

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-507136.AR bearings ( 600 mm x 800 mm x 244 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	Z-507136.AR
Bearing Type	Axial cylindrical roller bearings, Double direction
Series	Z-507..AR
Accuracy class	PN (ABEC-1)
Rows NO.	Two
Weight [lb]	720.9042
C_a Axial Dynamic [lbf]	819608
C_0a Axial static [lbf]	3819868
C_ua Axial Fatigue [lbf]	251025
n_G Speed ratings (oil) [rpm]	414
d φ Inside [inch]	23.6220
D Φ Outside [inch]	31.4960
T Thickness [inch]	9.6063
B Width [inch]	2.5197
D₁ [inch]	25.7873
r₁ (min.) [inch]	0.1181
d₁ [inch]	31.3385
D_c1 [inch]	25.1968
r(min.) [inch]	0.1969
Mounting dimensions
d_a [inch]	25.1968
D_a(max.) [inch]	26.2992
r_a(max.) [inch]	0.1575
r_a1(max.) [inch]	0.0984

The Z-507136.AR Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
