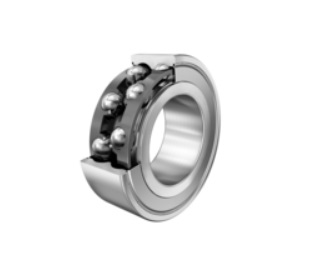

38072Z Solid Polyamide Snap Cage Angular Contact Ball Bearings, Sealed

🔍

38072Z

Bore Diameter:35 mm

Outside Diameter:47 mm

Width:10 mm

Weight:0.04 kg

Min. Order:1 Piece

The 38072Z

The 38072Z bearing is a Angular contact ball bearings Double row sealed with an inner diameter of 35 mm , an outer diameter of 47 mm, a width of 10 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 6452 N, its static radial rated load is approximately 6755 N. It uses CN standard radial clearance, 2RZ = Non-contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 3807 2Z

Dimensions:

Inside Diameter:

35 mm

Outside Diameter:

47 mm

Thickness:

10 mm

Weight:

0.04 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

6452 N

Static load Capacity, Radial (Cor):

6755 N

Fatigue Load Limit, Radial:

359 N

Reference speed (Grease rpm):

7398

Limiting speed (Oil rpm):

11680

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

double

Radial Clearance Trade No.:

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVH = Solid polyamide snap cage, ball-guided

Seals Type:

2RZ = Non-contact seal on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 100 °C

Series:

38..-B-2RZ-TVH

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	38072Z
Design Type	B = Bearing without filling slot
Bearing Type	Angular contact ball bearings Double row sealed
Series	38..-B-2RZ-TVH
Contact angle - α [°]	25
Rows NO.	double
Manufacturer Part Code	3807-2Z
Radial internal clearances	CN
Cage	TVH = Solid polyamide snap cage, ball-guided
Equivalent	3807 2Z
Lubricant	GA14 = Ball bearing grease, low noise
Seal type	2RZ = Non-contact seal on both sides
Heat stabilization	SN = up to 120°
m Weight [kg]	0.04
Reference From	FAG 38072Z
Dimensions
d φ Inside [inch]	1.378
D Φ Outside [inch]	1.850
B Width [inch]	0.394
r(min.) [inch]	0.012
D₁ [inch]	1.693
D₂ [inch]	1.734
d₁ [inch]	1.535
d₂ [inch]	1.476
a [inch]	0.890
Performance
C_r Radial Dynamic [N]	6452
C_0r Radial static [N]	6755
C_ur Radial Fatigue [N]	359
n_G Limiting speed (oil) [r/min]	11680
n_B Reference speed (grease) [r/min]	7398
Mounting dimensions
d_a(min.) [inch]	1.457
D_a(max.) [inch]	1.772
r_a(max.) [inch]	0.012
