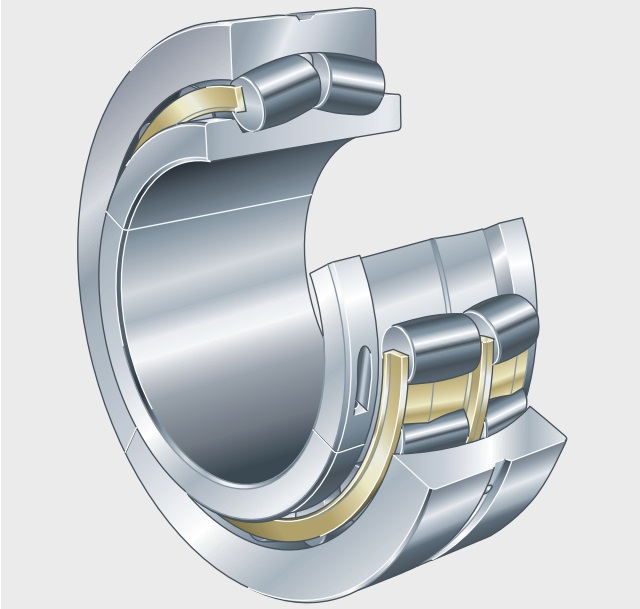

230S.907 Bore 239.713 Mm, Spherical Roller Bearings Split, Without Central Rip, Solid Brass Cage

🔍

230S.907

Bore Diameter:239.713 mm

Outside Diameter:400 mm

Width:160 mm

Weight:57.4 kg

Min. Order:1 Piece

The 230S.907 bearing is a Spherical roller bearings Split, without central rip with an inner diameter of 239.713 mm , an outer diameter of 400 mm, a width of 160 mm. GCr18Mo, G20Cr2Ni4A rings, GCr18Mo, G20Cr2Ni4A rolling mlement. Its dynamic radial rated load is approximately 1239114 N, its static radial rated load is approximately 2119765 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

239.713 mm

Outside Diameter:

400 mm

Thickness:

160 mm

Weight:

57.4 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

1239114 N

Static load Capacity, Radial (Cor):

2119765 N

Fatigue Load Limit, Radial:

179344 N

Limiting speed (Oil rpm):

669

Specifications:

Old Designations:

230S907

Structure:

Spherical Roller Bearings

Number of Rows:

Double row

Bearing Material:

GCr18Mo, G20Cr2Ni4A

Cage Type:

MA = Solid brass cage

Rolling Mlement Material:

GCr18Mo, G20Cr2Ni4A

Bore Type:

Z = Cylindrical bore

Operating Temperature:

-30 to +200 °C

Series:

230S

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	230S.907
Interchangeable	FAG 230S.907
Design	1
Bearing Type	Spherical roller bearings Split, without central rip
Splitted	S. = Split bearing inch
Bearing Mass - m [lb]	126.544
Rows NO.	Double row
Cage	MA = Solid brass cage
Design Type	E1A = without central rip
Replacement Bearing	23052K
Replacement Adapter sleeve	H3052XX907
Dimension
Inside - d φ [mm]	239.713
Outside - D Φ [inch]	15.748
Width - B [inch]	6.299
Width - C [inch]	4.094
r(min.) [inch]	0.157
Performance
Radial Dynamic - C_r [lbf]	278552
Radial static - C_0r [lbf]	476523
Radial Fatigue - C_ur [lbf]	40316
Limiting speed - n_G [min^–1]	669
Permissible axial load - F_a(max.) [lbf]	7180
Screw tightening torque - M_i [Nm]	120
Screw tightening torque - M_a [Nm]	69
Coefficient
e	0.22
Y₁	3.04
Y₂	4.53
Y₀	2.97
