228TTSF950BA1668 Screwdown Bearings, Heavy-duty Thrust Tapered Roller Bearing With Two Tapered Raceways
The 228TTSF950BA1668 Thrust tapered roller bearings are suitable for heavy-duty, high-rigidity axial load applications. Classic applications include crane slewing mechanisms, oil drilling rig rotary tables, rolling mill pressing mechanisms, heavy machine tool spindles, ship propeller thrust shafts, and the axial positioning ends of large gearboxes.
The 228TTSF950BA1668 bearing is a thrust tapered roller bearing, screwdown bearings, Heavy-duty thrust tapered roller bearing with two tapered raceways with an an outer diameter of 581.025 mm, a width of 167.894 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. its static axial rated load is approximately 43496177 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
228TTSF950BA1668 bearings (581.025 mm x 167.894 mm) have the advantages of Withstanding extremely large and heavy unidirectional axial thrust, and are therefore widely used in the Heavy machinery, rolling mills, ship propulsion systems, cranes, and oil drilling rigs.
| Part Number | 228TTSF950BA1668 |
| Design type | TTHDDV: One lower flat race; One upper tapered race. |
| Bearing Type | thrust tapered roller bearing, screwdown bearings, Heavy-duty thrust tapered roller bearing with two tapered raceways |
| Interchangeable | TIMKEN 228TTSF950BA1668 |
| Manufacturer Part Code | 228 TTSF 950 BA1668 |
| Series | TTSF |
| Units | Inch |
| Tolerance class | PN (ABEC-1) |
| C0a Axial Static [lbf] | 9777940 |
| D Φ Outside [inch] | 22.8750 |
| T Width [inch] | 6.6100 |
| T1 Cage Position [inch] | 1.5000 |
| rs max [inch] | 0.1181 |
| D1 [inch] | 22.7820 |
| Weight [lb] | 654.7662 |
| Tolerance Table | 23, 23 |

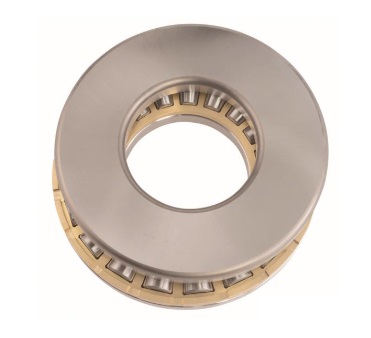

The 228TTSF950BA1668 Thrust tapered roller bearings mainly consist of a shaft ring, a housing ring, tapered rollers, and a cage. The raceways of the shaft ring and housing ring have a conical surface structure, and the rollers make line contact with the raceways. The cage is typically made of machined brass or stamped steel to ensure proper roller guidance.
Thrust tapered roller bearings can withstand enormous unidirectional axial loads and also possess a certain radial load-bearing capacity, far exceeding that of thrust ball bearings. They offer high rigidity, strong impact resistance, and precise axial positioning and preload can be achieved through the tapered roller structure.
