Z-547234.AR Axial Cylindrical Roller Bearings, Single Direction, Double Row

🔍

Z-547234.AR

Bore Diameter:572 mm

Outside Diameter:763 mm

Width:115 mm

Weight:168 kg

Min. Order:1 Piece

The Z-547234.AR Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The Z-547234.AR bearing is a Axial cylindrical roller bearings, Single direction, Double row with an inner diameter of 572 mm , an outer diameter of 763 mm, a width of 115 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 4244979 N, its static axial rated load is approximately 21589743 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

572 mm

Outside Diameter:

763 mm

Thickness:

115 mm

Weight:

168 KG

Dynamic load Capacity, axial:

4244979 N

Static load Capacity, axial:

21589743 N

Fatigue Load Limit, Axial:

1368573 N

Limiting speed (Oil rpm):

460

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

GCr15SiMn

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 150 °C

System of Measurement:

Metric

Series:

Z-547..AR

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Z-547234.AR bearings ( 572 mm x 763 mm x 115 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	Z-547234.AR
Bearing Type	Axial cylindrical roller bearings, Single direction, Double row

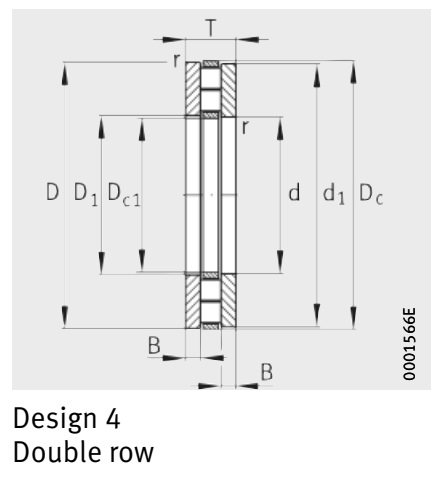

Design	4
Series	Z-547..AR
Accuracy class	PN (ABEC-1)
Rows NO.	Two
Weight [lb]	370.3728
C_a Axial Dynamic [lbf]	954271
C_0a Axial static [lbf]	4853374
C_ua Axial Fatigue [lbf]	307655
n_G Speed ratings (oil) [rpm]	460
d φ Inside [inch]	22.5196
D Φ Outside [inch]	30.0393
T Thickness [inch]	4.5276
B Width [inch]	1.3780
D₁ [inch]	22.5196
d₁ [inch]	30.0393
D_c [inch]	29.9212
D_c1 [inch]	22.0472
r(min.) [inch]	0.1969

The Z-547234.AR Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
